The Enduring Power and Versatility of Steel Chains

The steel chain, a seemingly simple yet profoundly significant engineering masterpiece, traces its history back to the dawn of human civilization. It is not a single piece of metal but a series of flexible, robust components made of meticulously connected metal rings or links. From the crude iron chains used for lifting heavy objects in antiquity to the high-strength steel chains that play a crucial role in modern marine, industrial, and transportation sectors, the chain has always been a symbol of human power and ingenuity. The fundamental design principle of a steel chain lies in its unique ability to withstand immense tensile forces while remaining flexible, serving the purposes of lifting, towing, securing, and transmitting power.

1. Introduction

A. The Essence of a Steel Chain: A Fundamental Definition

At its most basic level, a steel chain is a flexible structure composed of a series of interconnected metal links. These links are typically made of specially treated steel, and their shapes can be a simple circle or oval, or a more specialized form designed for a specific purpose. This interconnected design gives the chain extraordinary flexibility, allowing it to bend, wrap, and conform to various irregular surfaces and shapes, which makes it excel in scenarios where other rigid structures would fail. Whether it's lifting heavy machinery off the ground or serving as a ship's anchor chain plunging into the seabed, the core function of a steel chain remains unchanged: to act as a reliable medium for connection and power transmission, playing an indispensable role in human life and production. Its design philosophy is to "turn rigidity into flexibility," perfectly combining the toughness of steel with the agility of its links.

B. Core Purposes: Lifting, Towing, Securing, and Power Transmission

The core value of a steel chain lies in its versatility. First, in the field of lifting and towing, it is the heart of cranes, hoists, and pulley systems. At construction sites, massive steel structures are precisely hoisted into place with robust alloy chains; in ports, containers are safely unloaded from cargo ships using lifting chains. Second, in terms of securing and binding, the steel chain is equally irreplaceable. For example, in the transportation industry, high-strength transport chains are used to firmly secure heavy cargo (such as construction machinery or large pipes) to trucks, preventing movement during a bumpy journey. Its powerful locking force provides unparalleled security. In addition, steel chains also play an important role in power transmission systems, albeit in a different form. In bicycles, motorcycles, and industrial machinery, roller chains efficiently transmit the rotational force from the engine or human power to the wheels or working components by engaging with sprockets, realizing the conversion and utilization of energy.

C. A Brief History: From Wrought Iron to Modern Steel

The history of chains is closely tied to the development of human civilization. The earliest chains can be traced back to ancient civilizations such as Greece and Rome. They were usually made of wrought iron and were used for simple lifting and agricultural purposes. Although these early chains were heavy and had limited strength, their basic principles were no different from modern ones. With the advent of the Industrial Revolution, chain manufacturing technology underwent a revolutionary leap. With advances in metallurgy, especially the widespread use of steel, chain materials shifted from wrought iron to stronger and more reliable steel. This change not only greatly improved the chain's strength and durability but also enabled large-scale, standardized production. In the 20th century, through alloying (such as adding elements like nickel, chromium, and molybdenum) and precise heat treatment techniques, the performance of steel chains was pushed to new heights. Modern steel chains have become a high-tech product capable of meeting the demands of extreme environments and high-load applications, marking their evolution from a simple tool into a sophisticated engineering component.

2. Anatomy of a Chain

To understand the immense power of a steel chain, one must first dissect its internal structure and components. The performance of a chain fundamentally depends on the material used, the shape of the links, and the manufacturing process. These factors together determine the chain's strength, durability, and suitability for specific environments.

A. Materials: Diversified Steel Alloys

The material used in manufacturing a steel chain is the core determinant of its performance. Manufacturers select different steel alloys based on the chain's final application and required strength.

Carbon Steel:

This is the most common and widely used material for steel chains. It is an iron-carbon alloy, and its carbon content directly affects its hardness and strength. Ordinary carbon steel chains are typically used for general purposes, such as fencing, hanging light objects, or non-load-bearing connections. They offer good value for money, are easy to manufacture and process, but their strength is far inferior to heat-treated alloy steel. For example, a common Grade 30 chain is made of low-carbon steel.

Alloy Steel:

To cope with more demanding applications, such as heavy lifting and cargo lashing, other alloying elements such as manganese, molybdenum, nickel, and chromium are added to the steel. These elements can significantly improve the steel's strength, toughness, and wear resistance. For example, the Grade 80 and Grade 100 chains used for lifting and high-strength towing are typical alloy steel products. These chains undergo a special heat treatment process, and their microstructure is optimized to withstand huge impact loads and tensile forces while maintaining a certain ductility to prevent brittle fracture.

Stainless Steel:

For applications that require resistance to corrosion, moisture, or high-temperature environments, stainless steel is the preferred choice. Stainless steel contains at least 10.5% chromium, which forms a dense passive layer of chromium oxide on the surface of the steel, effectively preventing oxidation and rusting. Common types include 304 stainless steel, which has good corrosion resistance and is often used in food processing, construction, and decorative fields; and 316 stainless steel, which has stronger resistance to chloride corrosion due to the additional molybdenum, making it an ideal choice for marine environments, chemical plants, and coastal areas.

B. Link Types and Shapes

The shape of steel chain links is not uniform; different designs serve specific functional needs.

Round and Oval Links:

This is the most basic and common link shape. Their design is simple and they are easy to manufacture, widely used in general-purpose chains, such as regular chains and anchor chains. This shape allows the chain to rotate flexibly on pulleys or gears, but they are prone to twisting or knotting without external constraints.

Twisted Links:

In some applications where the chain needs to lie flat on the ground (such as certain security chains or decorative chains), the links are twisted so that each link is at a 90-degree angle to the adjacent one. This design prevents the chain from flipping over when under tension and ensures its stability on a flat surface.

Roller Links:

Unlike load-bearing chains, the links of power transmission chains (such as bicycle chains) are more complex. They consist of inner plates, outer plates, pins, bushings, and rollers. The rollers can rotate freely, greatly reducing the friction between the chain and the sprocket, thereby improving power transmission efficiency and durability.

C. Links with Studs: The Difference Between Open-Link and Stud-Link Chains

In many high-strength and marine applications, the design of a chain includes a unique component called a "stud," which distinguishes a stud-link chain from an open-link chain.

Open-link Chain:

This is the most common type of chain, with no additional support inside the link. Its advantages are simple structure, light weight, and low manufacturing cost. However, when subjected to immense tensile forces, the links may deform and twist or knot. In some cases, the diameter of the links may contract, causing the chain to shorten after being loaded.

Stud-link Chain:

This type of chain has a horizontal metal bar, or "stud," welded or cast in the middle of each link. The role of the stud is crucial:

• Prevents Knotting and Twisting: The stud effectively prevents the links from deforming under tension, thereby avoiding knotting and ensuring the chain's stability during operation.
• Maintains Shape: It helps maintain the original shape of the links, preventing them from contracting under extreme tension, which protects the chain's load-bearing capacity.
• Guiding Function: In equipment like ship windlasses, the stud helps the chain pass smoothly through the guide wheels, preventing jamming.
• Adds Weight and Stability: The stud adds to the overall weight of the chain, which is very important for anchor chains, as it helps the anchor maintain a stronger grip on the seabed.

Although the design of stud-link chains increases manufacturing complexity and cost, it provides unparalleled reliability and safety for marine and heavy-duty engineering, making it the industry standard for ship anchor chains and certain special lifting applications.

3. Classification and Grading System

In the world of chains, the Grade is the most important indicator of its performance and suitability. This standardized grading system directly reflects the chain's strength, manufacturing material, and heat treatment process, and is key to ensuring safety and selecting the correct chain. The higher the grade number, the higher the chain's tensile strength and its safety under a working load.

A. What is the Grading System?

The grading system classifies chains according to their Tensile Strength, which is the maximum tensile force a chain can withstand before breaking. Each grade represents a specific minimum tensile strength, which is strictly defined by industry standards organizations (such as ASTM or NACM). The grade number is usually stamped on the chain, helping users quickly identify its performance. From low-strength general-purpose chains (such as Grade 30) to the highest-strength alloy lifting chains (such as Grade 100), this system provides clear guidance for professionals and general users.

B. Understanding the Meaning of Grades

The grade number is closely related to the chain's load-bearing capacity and safety factor. It is worth noting that the Working Load Limit (WLL) is a more important concept than tensile strength. The Working Load Limit is the maximum weight a chain can safely bear under normal use conditions, usually 1/4 to 1/5 of its Minimum Breaking Strength. This safety factor exists to account for unexpected impact loads, wear, and other unforeseen factors. A higher-grade chain has a much higher Working Load Limit than a lower-grade chain of the same size, which means it can carry heavier objects without increasing weight and bulk.

C. Common Chain Types and Their Applications

Different grades of chains are designed for specific applications. Here are some of the most common examples:

Proof Coil Chain, Grade 30:

This is the most common type of chain on the market. It is typically made of low-carbon steel and is not heat-treated. Its characteristics are flexibility, affordability, and relatively low strength, making it unsuitable for high-stress applications. Grade 30 chains are widely used for:

• Farm and Household Use: Fencing, gate locks, hanging baskets, or swings.
• Security: Door latches, bicycle locks (though not theft-proof).
• General Towing and Securing: Trailer safety chains, non-critical cargo securing.
• Warning and Barriers: Warning chains for parking lots or construction sites.

Important Warning: Grade 30 chains are strictly prohibited from being used for any form of overhead lifting, as their load-bearing capacity is far below the safety standards required for lifting.

High Test/Transport Chain, Grade 70:

These chains are easily identifiable by their unique golden or yellow chromate coating. They are made of heat-treated medium-carbon alloy steel and are several times stronger than Grade 30. Grade 70 chain is the industry standard for transportation, primarily used for:

• Cargo Lashing: Securing vehicles, heavy machinery, and construction materials.
• Vehicle Towing: Used as a towing chain for tow trucks and rescue vehicles.
• Heavy-Duty Safety Chains: A safety connection between a trailer and a towing vehicle.

Special Note: Although Grade 70 chain is very strong, it is also not certified for overhead lifting because it lacks the specific design to withstand the impact loads and fatigue common in lifting applications.

Alloy Chain, Grade 80 and 100:

This is the highest grade of steel chain, specially designed for the most demanding applications. They are made of high-performance alloy steel and undergo a strict heat treatment and tempering process to achieve unparalleled strength and durability.

• Grade 80: This is the gold standard for industrial lifting. Its Working Load Limit is very high, and it is commonly used for crane slings, hoist chains, and other heavy-duty lifting equipment. It can withstand huge impact loads and repeated fatigue stresses, making it the first choice for construction, manufacturing, and mining.
• Grade 100: Represents the highest level of steel chain technology today. A Grade 100 chain is about 25% stronger than a Grade 80 chain of the same size, which gives it a significant advantage in applications that require maximum strength while reducing weight. For example, it can be used to make lighter but equally strong lifting slings, thereby improving operational efficiency and safety.

Highest Standard: Grade 80 and Grade 100 are currently the only chain grades officially certified and recommended for overhead lifting. They both undergo rigorous proof testing during the manufacturing process to ensure they meet the highest safety standards.

By understanding this grading system, users can make an informed choice between strength, weight, and cost based on their actual needs, thereby ensuring the safety and efficiency of their operations.

4. Manufacturing Process

The manufacturing of a steel chain is a complex process that transforms raw steel into a precise, high-strength engineering component. It combines traditional metal-forming techniques with modern heat treatment and quality control methods to ensure that every chain leaving the factory meets the stringent requirements of its intended use.

A. Raw Materials and Preparation

The manufacturing process begins with raw materials—usually large coils of high-quality wire rod. The composition of this steel is precisely proportioned to meet the specific performance requirements of different chain grades. For example, low-carbon steel is used for general-purpose chains, while high-carbon alloy steel is used to manufacture high-strength lifting chains. The wire rod is first descaled mechanically to remove surface oxides, then stretched and reduced in diameter by a wire-drawing machine to form a steel wire of precise diameter. This step is crucial because it ensures the accuracy of subsequent forming and welding and provides initial strengthening to the internal structure of the steel.

B. Forming and Welding: The Soul of the Chain

This is the core step that transforms the steel wire into a chain. A continuous steel wire is fed into a fully automated chain-forming machine. The molds and cutters inside the machine perform a series of actions at an astonishing speed: first, they cut the steel wire to a predetermined length; then, they bend it into an open link shape and thread it through the previous formed link; finally, they align the two open ends of the link for welding.

The welding process is key to the chain's strength and reliability. Modern chain manufacturing widely uses Flash Butt Welding technology. This process uses a powerful electric current to cause the two ends of the link to make contact and instantly generate intense heat. This "flash" process burns away impurities and oxides on the metal surface, creating a clean weld face. The machine then quickly applies immense pressure to forge the two molten ends together, forming a nearly seamless solid connection. Flash butt welding ensures that the strength of the weld area is almost the same as the base metal, eliminating the weaknesses that can exist in traditional manual welding.

C. Heat Treatment: Giving the Chain Extraordinary Strength

For high-grade chains (such as Grade 80 and Grade 100), forming and welding are just the beginning. What truly gives them extraordinary strength is the subsequent heat treatment process. This process usually includes two main stages: quenching and tempering.

Quenching:

The chains are placed in a large furnace and heated to their austenitizing temperature (usually between 850°C and 950°C), causing the internal crystal structure of the steel to transform. The chains are then rapidly cooled by immersion in a quenching medium (such as oil or water). This rapid cooling causes the steel's crystal structure to transform into a very hard but also very brittle martensite, which is the first step to achieving high strength.

Tempering:

Because the quenched chains are too brittle to withstand impact loads, tempering must be performed afterward. The chains are reheated to a lower temperature (usually between 350°C and 650°C), held for a period of time, and then slowly cooled. The purpose of tempering is to reduce the steel's brittleness and increase its toughness and ductility while maintaining its high strength. This process allows the chain to resist sudden impacts and fatigue while withstanding immense tensile forces, thereby greatly improving the safety factor.

D. Testing and Quality Control: Ensuring Absolute Reliability

The final step of manufacturing is a rigorous process of testing and quality control to ensure that every chain meets or exceeds industry standards.

Calibrating and Proof Testing:

Every high-grade chain leaving the factory must undergo this step. It is subjected to a tensile force higher than its Working Load Limit but lower than its breaking strength. This process serves two purposes: first, it eliminates internal stresses generated during manufacturing, allowing the links to settle better and improving the chain's dimensional stability; second, it acts as a non-destructive test to confirm that the chain can withstand its rated working load.

Destructive Testing:

To verify the chain's minimum breaking strength, manufacturers regularly pull a sample from a production batch to the point of fracture. The recorded breaking load must be higher than the set minimum breaking strength, which ensures that the entire production batch meets safety standards.

Visual and Nondestructive Testing:

Throughout the manufacturing process, operators and automated systems perform multiple visual inspections to look for any visible defects, such as cracks or weld problems. In addition, nondestructive testing technologies such as Magnetic Particle Inspection are used to check for surface and subsurface cracks that are invisible to the naked eye, ensuring the integrity of the chain.

This rigorous manufacturing process, from the selection of raw materials to the final strict testing, is the fundamental guarantee that modern steel chains can safely and efficiently fulfill their mission.

5. Cross-Industry Applications

The true value of a steel chain lies in its amazing versatility, which allows it to easily adapt to various harsh industrial environments and play an irreplaceable role. From heavy construction to precision machinery, the steel chain serves as a core component, silently supporting the operation of the modern world with its unparalleled strength and reliability.

A. Construction and Lifting: The Pillar of Heavy Work

In the fields of construction, manufacturing, and logistics, the steel chain is a core tool for lifting and moving heavy objects. For example, in the construction of skyscrapers, massive steel beams and precast concrete slabs need to be precisely hoisted hundreds of meters into the air. This is where lifting chains made of Grade 80 or Grade 100 alloy steel become the core of crane slings and lifting lugs. These chains are specially designed to withstand huge tensile forces and repeated fatigue loads while adapting to the different shapes and sizes of objects through their flexibility. In factory workshops, electric and manual hoists also rely on high-strength chains to lift molds, machine parts, and finished products. The chains in these applications must not only have a strong load-bearing capacity but also be highly wear-resistant to withstand frequent daily use.

B. Transportation and Cargo Securing: Ensuring a Safe Arrival

In the field of road transport, the steel chain is a lifeline for ensuring cargo safety. For heavy or oversized goods like large machinery, pipes, or timber, ordinary straps cannot provide sufficient security. This is where Grade 70 transport chains come into play. They are specifically designed for securing cargo on trucks and flatbed trailers. Using chain binders and tensioners, drivers can tighten the chains to generate a huge preload, firmly pressing the cargo against the bed of the truck. This secure fastening method prevents the cargo from moving during acceleration, braking, and turning, thereby greatly reducing the risk of accidents.

C. Marine Engineering: Anchor Chains and Mooring

The marine environment is one of the most severe tests for steel chains. The salt in the seawater and the constant moisture are highly corrosive to metal, while the wind and waves on the sea surface exert huge impact forces on the chains. Therefore, the anchor and mooring chains used for ships must have superior corrosion resistance and tensile strength. The vast majority of modern ships use stud-link anchor chains. The stud not only prevents the chain from knotting when anchoring but also helps the chain run smoothly through the windlass and provides extra weight and stability for the anchor. These chains are usually made of high-strength alloy steel and undergo special anti-corrosion treatment to ensure their reliability in harsh marine conditions for decades.

D. Power Transmission: From Bicycles to Industrial Automation

In addition to load-bearing applications, steel chains also play a key role in power transmission systems. This type of chain is usually called a roller chain, and its design is fundamentally different from load-bearing chains. A roller chain consists of a series of rollers, bushings, and plates that can precisely mesh with the teeth on a sprocket. When one sprocket rotates, it drives the other sprocket through the chain, thereby transmitting rotational power from one shaft to another. This transmission method is very common in many mechanical devices because it is efficient, reliable, and relatively easy to maintain.

• Consumer Products: The most common examples are bicycles and motorcycles.
• Industrial Machinery: In automated production lines, conveyor belt systems, agricultural machinery (such as tractors and harvesters), and printing presses, roller chains are core transmission components. They ensure the synchronized and coordinated movement of various parts of the equipment and are the cornerstone of modern industrial automation.

E. Special and Everyday Applications: The Ubiquitous Connection

The applications of steel chains extend far beyond this. In the mining industry, chains are used for ore transport and lifting equipment; in the logging industry, they are used for towing and bundling timber; in agriculture, they are towing tools for farm vehicles and equipment. In addition, steel chains also permeate our daily lives, such as in garage door openers, security fences, and various decorative uses. It is this omnipresence, from the grand to the mundane, that demonstrates the enduring vitality of the steel chain as a simple yet highly efficient engineering component.

6. Maintenance and Safety

Although steel chains are known for their durability, their performance and lifespan are not eternal. Proper maintenance and regular safety inspections are crucial to ensuring their long-term reliability and the safety of operators. Neglecting these steps can lead to premature chain failure, causing serious property damage and even endangering lives.

A. Routine Inspection and Maintenance

The first step in routine maintenance is regular inspection. Before using a chain, it should always be visually inspected for any signs of wear, deformation, or damage.

• Wear: Check the contact points between the links for obvious signs of wear. Excessive wear weakens the chain's strength, especially in power transmission chains, where it can cause the chain to "stretch" and become mismatched with the sprockets.
• Deformation: Check for any twisted, stretched, or bent links. Any permanent deformation indicates that the chain may have been overlaoded or subjected to impact, and should be immediately taken out of service.
• Cracks and Breaks: Carefully inspect the surface of the links for tiny cracks that may be caused by fatigue or stress concentration. Even microscopic cracks can propagate quickly under stress.
• Corrosion: Check the chain surface for rust or corrosion. Although many chains have anti-corrosion coatings, long-term exposure and wear can cause them to fail. Corrosion reduces the effective cross-sectional area of the links, thereby lowering their strength.

In addition to visual inspection, lubrication is crucial for power transmission chains. Proper lubrication can reduce friction between the rollers, bushings, and plates, thereby reducing wear, extending the chain's lifespan, and improving transmission efficiency. Manufacturers usually recommend specific chain lubricants.

B. Scrapping Standards and Safety Warnings

A chain should be immediately taken out of service and scrapped if any of the following conditions are found:

• The links are stretched beyond the specified length: This is a typical sign of excessive wear or overloading.
• Permanent link deformation: Any obvious twisting, bending, or stretching means the chain's load-bearing capacity has been compromised.
• Cracks, breaks, or deep dents: These are potential points of failure, and even tiny cracks can lead to catastrophic consequences on the next use.
• Severe corrosion: Corrosion leads to material loss, which significantly reduces the chain's strength.

C. Technological Innovation and Future Outlook

As a traditional engineering component, the steel chain's development has not stopped. Future innovations will focus on materials science, smart monitoring, and manufacturing technology to make it more efficient, safer, and environmentally friendly.

• New Materials: New alloys under development, such as nanostructured steel or composite materials, are expected to provide higher strength and wear resistance without increasing weight, which will enable future chains to withstand more extreme environments and greater loads.
• Smart Chains: The development of sensor technology provides the possibility for "smart chains." Embedding micro-sensors in the links can monitor the chain's tension, temperature, and wear status in real-time, and send data to a monitoring system via a wireless network. This enables predictive maintenance, which warns of potential failures before they occur, thereby greatly improving operational safety and reducing unexpected downtime.
• Automated Manufacturing: With the application of robotics and artificial intelligence in manufacturing, future chain production will be more automated and precise. This will improve production efficiency, reduce costs, and ensure that every chain meets the highest quality standards.

In the complex world of modern engineering, the steel chain may not be the most eye-catching component, but it is undoubtedly one of the most reliable and fundamental elements. Its history bears witness to the evolution of humanity from simple tools to complex machinery, and its future will continue to play a key role in the wave of technological progress, silently connecting and supporting our world with its enduring power.

7. Conclusion

The steel chain is more than just a simple engineering component; it is a microcosm of human societal progress. From its ancient origins to its core position in modern industry, it carries not just physical weight but a promise of safety, efficiency, and reliability. Through continuous optimization of materials science, manufacturing processes, and strict safety standards, the steel chain has evolved from a primitive iron chain into a precision tool capable of handling the most demanding environments today. Its versatility makes it indispensable in multiple fields, including construction, transportation, marine engineering, and power transmission, supporting the operation of the modern world.

Despite competition from new materials and technologies, the future of the steel chain remains promising. Technological innovations such as smart monitoring, new materials, and automated manufacturing will further enhance its performance and safety, allowing it to maintain its core position in the engineering challenges of the future. The story of the steel chain is a story of strength, resilience, and continuous innovation, and it will continue to quietly connect and drive the gears of human civilization, moving steadily forward.

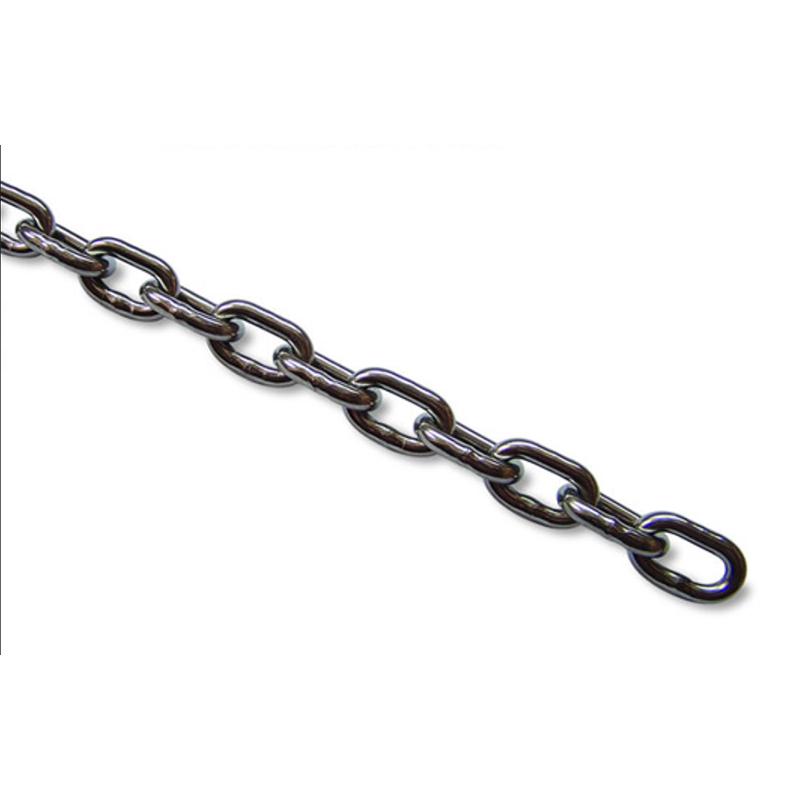

KOR Stainless Steel Chain
