How does the gear mechanism inside a ratchet tie-down for cargo control chains work to create tension and lock it in place?

Introduction

In the vast and interconnected world of global logistics and heavy transport, the security of a load is paramount. A failure in securing cargo can lead to catastrophic accidents, significant financial loss, and severe safety hazards. Among the most critical tools in this domain are robust securing systems, primarily cargo control chains, ratchet tie-down assemblies. These devices form the backbone of securement for everything from construction equipment and heavy machinery to large industrial components on flatbed trucks and in shipping containers. While the chain provides immense tensile strength, the true intelligence and functionality of the system lie in the ratchet mechanism.

The efficacy of any cargo control chains, ratchet tie-down unit is a direct result of its design and manufacturing quality. Companies that specialize in this field, such as Shanghai TCH Metals & Machinery Co., Ltd., invest significantly in precision engineering and rigorous testing. With over two decades of experience since its establishment in 2001, this renowned industry leader has built a strong reputation, particularly in the North American market, by providing top-quality cargo control products. Their commitment to excellence ensures that each ratchet mechanism meets the highest industry standards, capable of performing reliably in harsh environments characterized by high loads, variable temperatures, and constant vibration. This level of quality is non-negotiable, as the mechanism's failure is not an option.

The Fundamental Components of a Ratchet Tie-Down Assembly

Before delving into the mechanics of the ratchet itself, it is essential to understand the complete assembly of a typical cargo control chains, ratchet tie-down system. It is a integrated unit where each component plays a vital role.

The primary element is the load chain, typically a high-test grade 70 transport chain or higher. This chain is distinguished by its distinctive gold-yellow dichromate finish and its exceptional strength-to-weight ratio. The grade designation indicates a minimum tensile strength, with grade 70 being the standard for North American cargo securement due to its durability and compliance with regulations. The chain's job is to bear the immense forces generated during transit, including shock loads from sudden stops, swaying, and road vibrations.

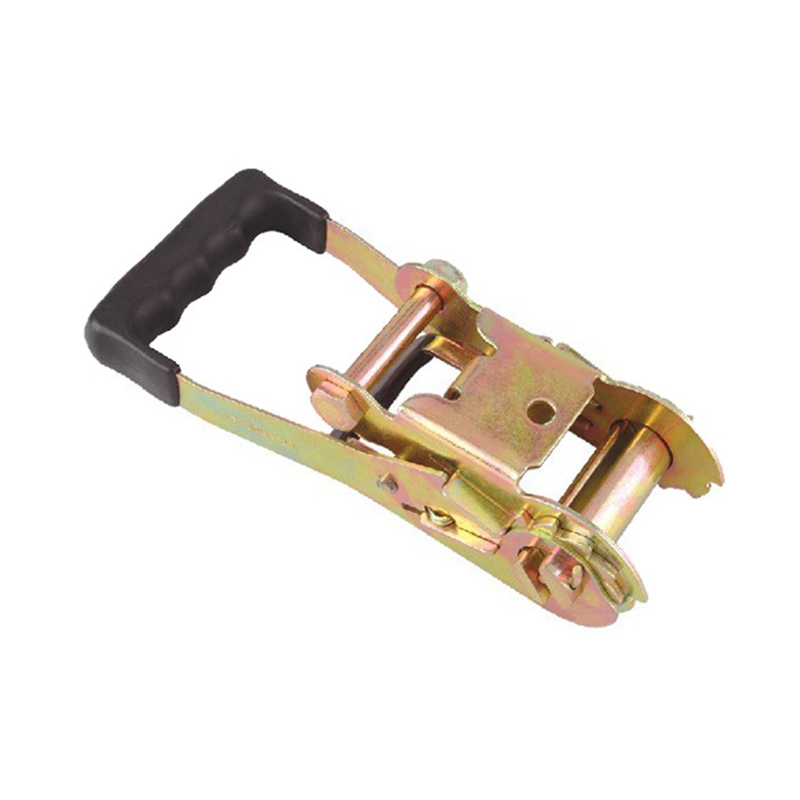

Attached to one end of this chain is the ratchet assembly housing. This is the core component that contains the intricate gear mechanism. The housing is usually constructed from forged steel or a similarly high-strength alloy to withstand tremendous pressure without deformation. It features a sturdy mandrel or spindle around which the chain will be spooled.

The assembly is completed by the end fittings. The end of the chain that does not feed into the ratchet is terminated with a master link and a large grab hook, designed to easily attach to anchor points on a trailer. The ratchet housing itself will have a similar hook or a clevis bracket for attachment to the opposite anchor point. The quality of these forged hooks is critical, as they must resist straightening under extreme tension.

Table: Key Components of a Cargo Control Chains, Ratchet Tie-Down System

The Principle of Mechanical Advantage: The Foundation of Tension

At its heart, a ratchet tie-down is a simple machine designed to create a mechanical advantage. This principle allows a user to apply a relatively small input force over a long distance to generate a much larger output force over a shorter distance. In simpler terms, the ratchet mechanism multiplies the effort exerted by the operator, enabling a single person to tension chains with thousands of pounds of force—a task impossible through brute strength alone.

This is achieved through the interaction of gears and levers. The lever handle provides the first stage of advantage; the longer the handle, the greater the force multiplication. The second and most crucial stage is the gear system inside the housing. The mechanism transforms the long, easy strokes of the handle into powerful, short rotations of the mandrel, which pulls and tightens the chain incrementally with each stroke. This systematic amplification of force is what makes the securement of multi-ton loads a manageable and controlled process.

A Step-by-Step Breakdown of the Ratcheting and Locking Process

The operation of a cargo control chains, ratchet tie-down can be broken down into a continuous cycle of three distinct phases: the tensioning stroke, the reset stroke, and the perpetual locking function.

Phase 1: The Tensioning Stroke (Pulling the Handle)
The process begins with the operator pulling the lever handle upward and away from the ratchet body. This action does several things simultaneously. As the handle is pulled, it rotates a central drive gear or pawl actuator inside the housing. This rotating gear has teeth that are specifically angled. As it turns, it engages with the teeth of a larger, main gear (or sprocket) that is directly connected to the mandrel. The angled teeth of the drive gear push against those of the main gear, causing the main gear and mandrel to rotate a precise fraction of a turn. This rotation winds the chain onto the mandrel, taking up slack and applying tension to the entire assembly. The genius of the design is that during this stroke, a secondary component called the locking pawl (a spring-loaded lever with a tooth) simply slides or “rides” over the teeth of the main gear, producing a characteristic clicking sound. It offers no resistance during this forward motion.

Phase 2: The Reset Stroke (Returning the Handle)
Once the handle reaches the apex of its stroke, the operator must return it to its starting position to begin another tensioning pull. As the handle is pushed back down, the angled teeth of the drive gear disengage from the main gear. However, at this precise moment, the locking pawl becomes the most critical safety component. Its spring forces its tooth to drop down between the teeth of the now-stationary main gear. This action physically prevents the main gear from reversing its rotation due to the immense tension stored in the chain. The load is trying desperately to unwind the chain, which would reverse the mandrel and main gear, but the locking pawl acts as a solid barrier against this motion. With the main gear securely locked, the drive gear can be freely reset without losing any of the gained tension.

Phase 3: The Locking Function (A Perpetual State)
This cycle repeats—pull to tension, push to reset—with each handle stroke taking up another small section of chain and increasing the tension exponentially. The locking pawl is the guardian of this progress. It is engaged at all times except when it is deliberately disengaged by the operator for release. Its design ensures that any force from the load that attempts to reverse the gear will only drive the pawl's tooth deeper into the gear tooth, creating a stronger lock. This is known as a self-energizing lock. The system is designed so that the greater the load, the tighter and more secure the lock becomes, making it virtually impossible for a properly functioning ratchet to accidentally release under tension.

The Critical Role of Materials and Manufacturing Precision

The theoretical operation described above is entirely dependent on flawless execution in metal. The forces involved are enormous, and the margin for error is zero. The main gear, drive gear, and locking pawl are typically machined or forged from high-carbon or alloy tool steel. After being shaped, these components undergo a process called heat treatment. This involves carefully heating and cooling the steel to precise temperatures to alter its microstructure, making it extremely hard and resistant to wear and deformation. A hardened gear tooth will not strip or shear under load.

Furthermore, the precision of the machining is paramount. The teeth on the gears and the pawl must be perfectly shaped and spaced. If the tolerances are too loose, the pawl could slip or chatter, failing to lock properly. If they are too tight, the mechanism will bind and be impossible to operate. The spring that actuates the locking pawl is also a critical piece of engineering; it must be strong enough to instantly engage the pawl without fail, yet not so strong that it makes operating the handle unduly difficult.

This is where the expertise of a manufacturer like Shanghai TCH Metals & Machinery Co., Ltd. proves its value. Their state-of-the-art manufacturing facility and focus on quality control ensure that every cargo control chains, ratchet tie-down unit that leaves their factory has internal components that are not only made from the correct materials but are also finished to exacting tolerances. This rigorous process guarantees consistent performance and reliability, reducing equipment failure rates and extending the product's operational lifespan, which is a key demand in fields like logistics and construction.

Application and Safety: Beyond the Mechanism

Understanding the mechanism naturally leads to a discussion of its correct application and the overarching importance of safety. A perfect ratchet mechanism is useless if the entire cargo control chains, ratchet tie-down system is misapplied.

The first rule of safe operation is never to exceed the Working Load Limit (WLL). The WLL is the maximum load that the assembly is designed to handle under normal service conditions. It is stamped or labeled on the ratchet body and the chain hooks. This rating is not a suggestion; it is the maximum safe capacity based on a safety factor (often 4:1 or higher) applied to the minimum breaking strength of the product. Exceeding the WLL risks catastrophic failure. Furthermore, the WLL can be severely reduced if the chain is not used correctly—for example, if it is choked around a sharp edge without edge protection, which can cut through the metal.

Proper inspection before every use is non-negotiable. The operator must visually inspect the entire assembly. On the chain, this means looking for stretched links, cracks, excessive wear, or significant rust corrosion. On the ratchet, the inspection must include checking for bent handles, cracks in the housing, and—most importantly—ensuring the locking pawl functions correctly. The pawl should engage with a sharp, audible “click” and should not be able to be held in the disengaged position by its spring tension. A worn or damaged pawl is an immediate cause for removal from service.

The process of releasing tension, known as “unlatching” or “unloading,” is a potentially dangerous procedure that must be done with care. The operator should never stand directly over the ratchet or in the path of the chain. The correct method is to partially release the tension by slowly lifting the release lever (which retracts the locking pawl) just enough to relieve the strain, then carefully control the unwinding of the chain for the final release.

The humble ratchet mechanism within a cargo control chains, ratchet tie-down system is a masterpiece of practical engineering. It elegantly combines the ancient principles of the lever and the gear to solve a modern problem of immense importance: controlling tremendous forces with human-scale effort. From the initial engagement of the drive gear to the unwavering vigilance of the spring-loaded locking pawl, every component works in perfect harmony to create tension and, more importantly, to maintain it absolutely. This reliability is the bedrock of safety in transportation and heavy industry.

This reliability is not accidental. It is the result of decades of refinement, precise manufacturing, and an unwavering commitment to quality from producers dedicated to the field. The internal mechanism, though hidden from view, is the heart of the system. Respecting its design, understanding its function, and adhering to its limits are the responsibilities of every operator who uses a cargo control chains, ratchet tie-down. In the demanding environments of construction, agriculture, and logistics, where safety and efficiency are paramount, this knowledge ensures that these vital tools perform their duty, securing valuable loads and protecting lives on the road.
