What is the proper way to operate and release tension on a heavy duty load binder?

Introduction: The Critical Role of Secure Cargo

In the globalized world of logistics, construction, and heavy industry, the safe transit of materials is a non-negotiable priority. At the heart of this safety protocol lies a deceptively simple yet profoundly critical tool: the heavy duty load binder. These devices are the final barrier between a securely transported load and a catastrophic accident on the road or worksite. Incorrect operation is not merely a procedural failure; it is a significant safety hazard that can lead to equipment damage, severe injury, or loss of life.

Section 1: Foundational knowledge of heavy duty load binders

Before delving into operational procedures, one must understand the tool itself. A heavy duty load binder is a tensioning device designed to secure loads, typically using chain, for transport or lifting. They are engineered to withstand immense forces and are rated by their Working Load Limit (WLL), which is the maximum force they are designed to handle in a straight-line pull during routine operation.

There are two primary types of heavy duty load binders, each with distinct mechanisms:

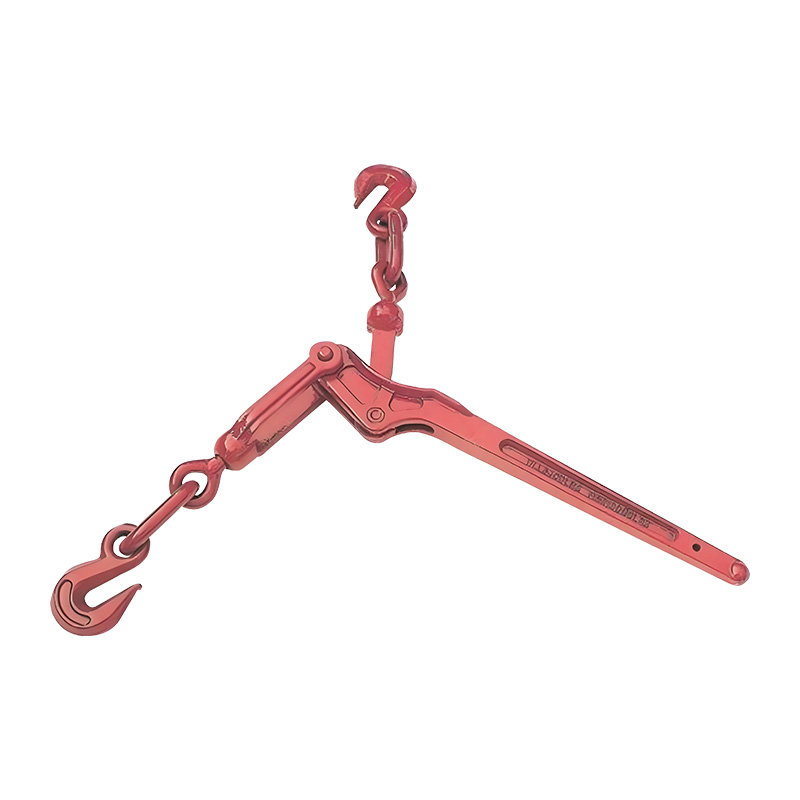

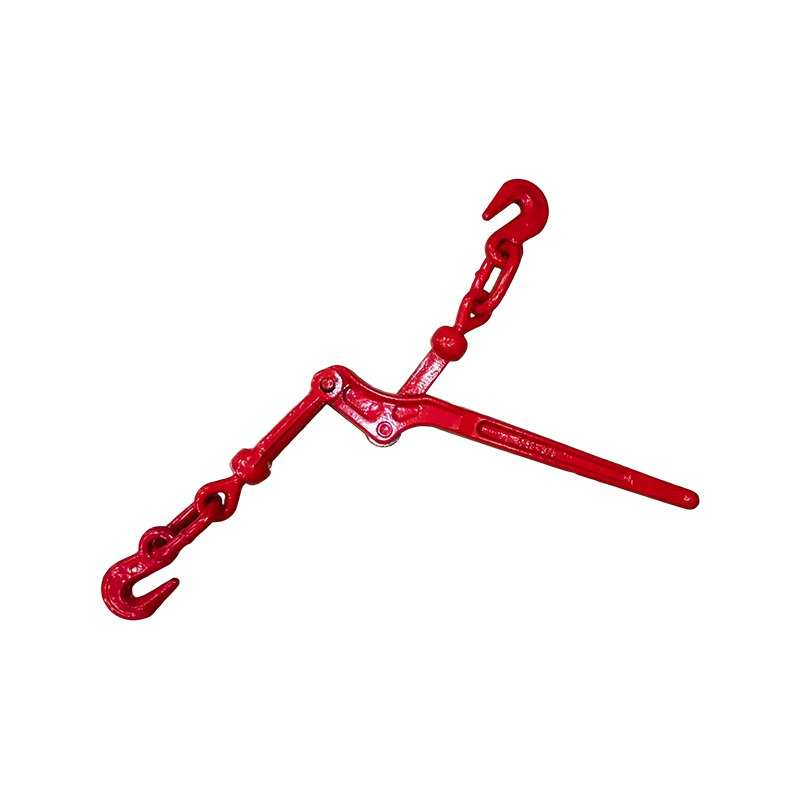

1. Lever-Style (or Lever-Acting) Binders: This traditional design features a handle that is pumped back and forth to take up chain slack and apply tension. Its operation relies on a toggle mechanism that locks into place under tension. The primary advantage of the lever binder is its speed and the ability to apply very high tension quickly. However, this also presents a significant danger during release, as the stored energy can cause the handle to fly back with violent force if not controlled properly.

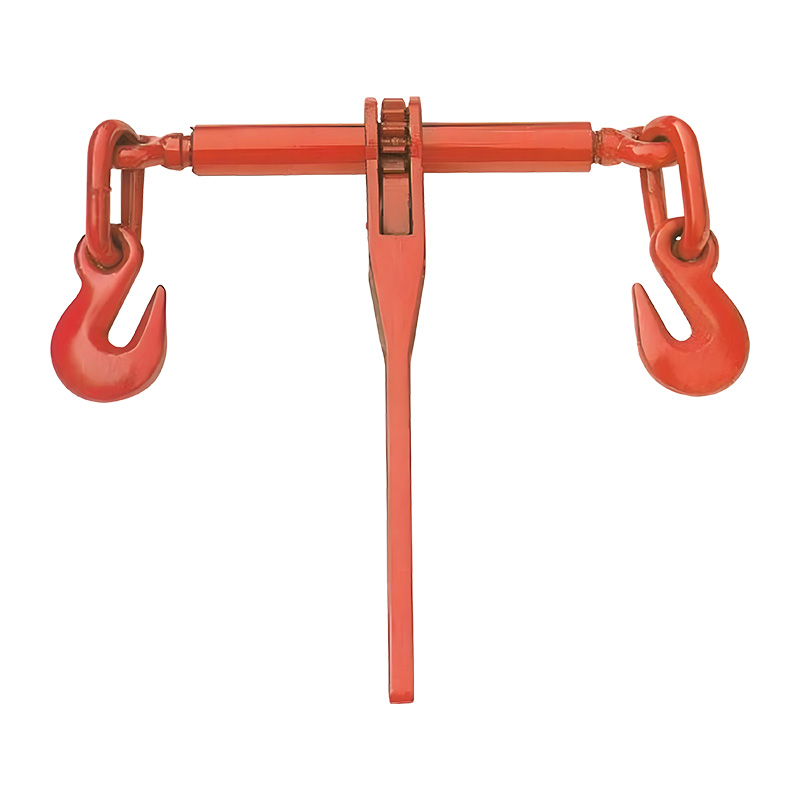

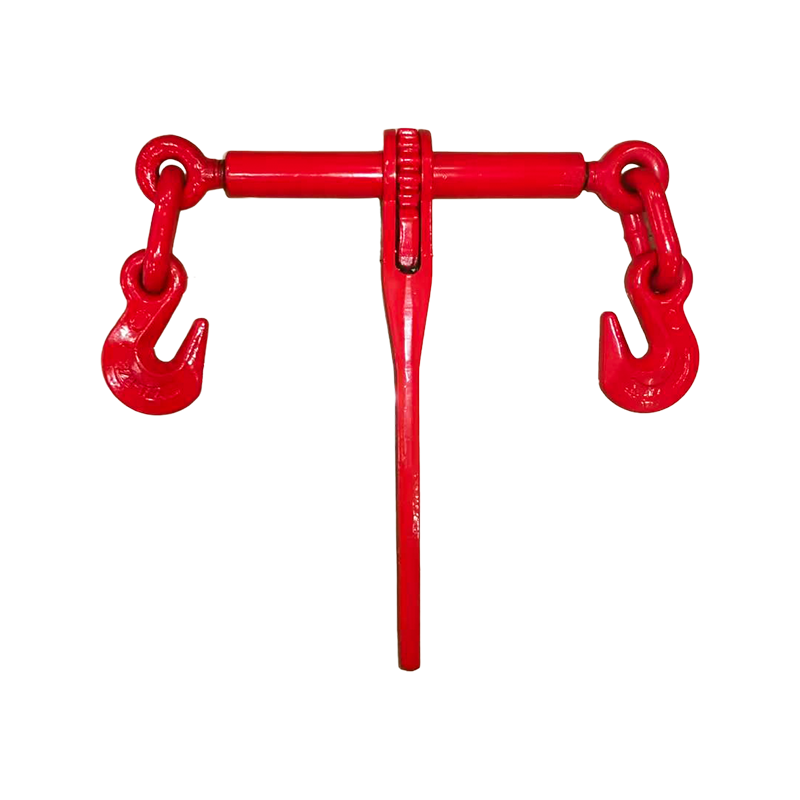

2. Ratchet-Style Binders: This design incorporates a ratcheting gear mechanism. The handle is moved in a repetitive, back-and-forth motion to advance a pawl, which incrementally tightens the chain. The key advantage of the ratchet binder is the superior control it offers during both tensioning and release, significantly reducing the risk of sudden energy release. It allows for finer tension adjustment but can be slower to operate than a lever binder on very large loads.

Understanding the type of binder in use is the first and most crucial step in determining the correct safe-handling procedure.

Section 2: Pre-operation inspection and preparation

Safety is not an event that begins with tensioning; it is a process that starts long before the binder is ever touched. A rigorous pre-use inspection is mandatory.

A thorough visual and physical inspection must be conducted before every single use. This includes checking for any signs of damage, wear, or deformation. Look for cracks, especially in the hooks, handle, and connection points. Examine the hooks for any bending, twisting, or opening up (where the throat of the hook becomes wider). For lever binders, ensure the toggle mechanism moves freely and locks securely without slipping. For ratchet binders, inspect the gear teeth and pawl for wear, chipping, or any sign that the pawl may not engage the gear fully. The load chain itself must also be inspected for stretched links, cracks, or excessive wear.

Selecting the appropriate equipment for the task is a fundamental safety requirement. This means using a binder with a Working Load Limit that meets or exceeds the required tension for the securement task, and ensuring it is compatible with the grade and size of the chain being used. Using a Grade 70 binder with a Grade 100 chain, or vice versa, can compromise the system's integrity. Furthermore, the working environment must be assessed. Operators must ensure they have stable, secure footing and that the load is stable before attempting to secure it. Personal Protective Equipment (PPE) is not optional; it is essential. This must always include heavy-duty leather gloves and ANSI-approved safety glasses at a minimum. Steel-toed boots are also highly recommended.

Section 3: The step-by-step procedure for operating (tensioning) a heavy duty load binder

The process of applying tension must be executed with deliberate care and control.

Positioning and Connection: First, drape the chain over the load in a manner that provides direct, straight-line pull to the anchor points. Avoid sharp angles, as these can drastically reduce the effective WLL of the chain and binder. Connect the binder's hooks to the chain links. Never hook the binder back onto itself or “bucket hook” it; each hook must be fully seated onto a legitimate chain link, ensuring the point of contact is on the bearing point (the saddle) of the hook, not the tip.

Taking Up Slack: For a lever binder, begin by pumping the handle slowly to take up the initial slack in the chain. Keep your body positioned to the side of the handle's swing path, never directly in front of or behind it. For a ratchet binder, place the handle in the “open” or “lift” position and take up the slack by hand before beginning the ratcheting process.

Applying Final Tension: With a lever binder, use smooth, full strokes to continue tightening. As tension increases, the effort required will become significantly greater. Be cautious not to over-tension. The goal is to secure the load to prevent movement, not to deform the cargo or the trailer. With a ratchet binder, continue the ratcheting motion. The incremental nature of the ratchet provides feedback; when it becomes very difficult to move the handle, adequate tension has likely been achieved.

Final Check: Once tensioned, perform a final visual check. Ensure both hooks are fully and correctly engaged, the handle is in its locked position (for lever binders, the handle should be positioned and secured with a retaining clip if equipped), and the chain is tight and properly routed.

Section 4: The critical procedure for releasing tension on a heavy duty load binder

This is the most hazardous phase of using a heavy duty load binder. The potential energy stored in the stretched chain and the binder's mechanism is immense and can be released explosively if not managed correctly.

General Safety Posture for Release: Regardless of binder type, the universal rule is to never put any part of your body in the direct line of fire of the handle or hooks. Always stand to the side, maintaining a stable stance. Keep your face and body turned away from the immediate action path. Be aware that the chain will suddenly become slack and may fall or swing.

Releasing a Lever-Style Binder (The “Two-Hand” Method): This is the safest and most widely recommended method. First, ensure the load is completely stable and that releasing the binder will not cause a shift. Lightly tap the handle with the palm of your hand to see if there is any residual tension or “spring” in the mechanism. Using both hands, place one hand on the handle itself and the other hand firmly on the “hammer” side of the binder's jaw or the main body. Apply firm pressure with the hand on the body to counteract the expected force. With a swift, deliberate motion, use the hand on the handle to strike the safety latch and lift the handle out of its locked position. The goal is to just barely disengage the mechanism, allowing the tension to bleed off slowly and in a controlled manner. The hand on the body is there to control the handle's backward travel. Never use a “one-hand” slapping method, as it offers no control.

Releasing a Ratchet-Style Binder: The release process for a ratchet binder is inherently safer but still requires attention. Typically, a ratchet binder has a release lever or pawl. The operator must first ensure the load is stable. Then, while standing clear of the handle's path, engage the release mechanism. Often, the handle will need to be moved slightly to relieve pressure on the pawl before it can be disengaged. Once released, the handle can be moved freely, and the tension will be released in a controlled, incremental way as the gear is reversed. The operator maintains positive control of the handle throughout the entire process.

Post-Release Protocol: After the tension is fully released and the chain is slack, carefully disengage the hooks. Coil or stack the chain and binder neatly for storage, preventing trip hazards and damage to the equipment.

Section 5: The consequences of improper operation

Ignoring these detailed procedures has dire consequences. The most common and severe result of improper release is the uncontrolled “kickback” of the handle. This metal handle can become a lethal projectile, traveling at high speed with enough force to crush bones, cause severe lacerations, or be fatal. Over-tensioning can lead to metal fatigue, cracking, or catastrophic failure of the binder or chain under stress, potentially causing the entire load to shift or fall. Under-tensioning fails in its primary purpose, allowing load movement that can abrade chains, damage cargo, and ultimately lead to a shift in weight balance and a loss of vehicle control. Using damaged or worn equipment is a gamble with odds that inevitably favor a tragic outcome.

Section 6: Maintenance, storage, and industry standards

Proper operation is complemented by diligent care. After use, heavy duty load binders should be cleaned of dirt and debris and stored in a dry location to prevent rust and corrosion. They should never be dropped or abused. A formal, periodic inspection schedule should be established, with any binders showing signs of wear, distortion, or cracking immediately taken out of service and destroyed to prevent future use. Adherence to recognized safety standards, such as those published by the Occupational Safety and Health Administration (OSHA) and the American Society of Mechanical Engineers (ASME B30.9), is not merely a recommendation but a legal and ethical obligation for any entity involved in cargo securement. These standards provide the framework for training, inspection, and operation that saves lives.
