Custom Round Sling 1T - 20T

What are the key components that make up a Round Sling 1T - 20T?

In the demanding world of material handling, construction, and heavy lifting, the integrity of every component is paramount. Among the most critical tools in this sector are round slings, versatile and robust lifting solutions designed for a vast array of applications. Understanding what constitutes these slings is not merely a matter of technical curiosity but a fundamental aspect of operational safety and efficiency.

The term "round sling 1T - 20T" refers to a specific category of lifting equipment with a Working Load Limit (WLL) ranging from one to twenty metric tons. These are not simple straps or ropes but are sophisticated assemblies engineered for strength, flexibility, and durability. The performance of a round sling 1T - 20T is not dictated by a single element but by the synergistic relationship between its core constituents: the load-bearing core, the protective outer jacket, and the crucial end terminations. A failure in any one of these components can compromise the entire assembly, making a thorough understanding of each essential for anyone involved in their specification, inspection, or use.

the load-bearing core: the heart of the round sling

The most critical component of any round sling is its internal load-bearing core. This element is responsible for absorbing and supporting the entire tensile load during a lift. The core is what ultimately defines the sling's maximum capacity and its elongation characteristics.

For round slings in the 1T to 20T range, the core is exclusively constructed from high-performance synthetic fibers arranged in a specific, continuous loop configuration. The choice of fiber is the primary determinant of the sling's properties. The most common and widely used material for the core is polyester (PES) filament yarn. Polyester is favored for its excellent combination of strength, flexibility, and resistance to stretching. It has a moderate elongation at break, which provides a valuable cushioning effect during lifting, absorbing energy and reducing shock loads on both the sling and the load itself. Furthermore, polyester offers good resistance to abrasion, most chemicals, and ultraviolet (UV) degradation, though prolonged direct sunlight exposure should still be avoided.

In more specialized applications, other materials may be employed. For instance, high-tenacity polypropylene (PP) might be used in environments where resistance to certain acids and bases is required, or where a truly lightweight sling is necessary for buoyant applications. However, polypropylene has a lower melting point and is generally less abrasion-resistant than polyester. For the most demanding applications requiring exceptional strength-to-weight ratios and minimal elongation, aramid fibers (e.g., Kevlar®) or high-modulus polyethylene (HMPE) fibers (e.g., Dyneema® or Spectra®) are used. These advanced synthetic fibers allow for a much smaller and lighter sling to achieve the same 20T capacity, but they come with a higher cost and specific handling requirements, particularly regarding heat and bending fatigue.

The construction of the core is as important as the material. The yarns are not simply bundled together; they are braided or parallel-laid into a continuous, endless loop. This construction method is vital as it eliminates any splices or knots within the core that would create weak points. The endless loop design ensures that the load is distributed evenly across all the yarns throughout the entire circumference of the sling. The number of yarns and the tightness of the braid are precisely calibrated to achieve the target Working Load Limit, whether it is 1T, 5T, 10T, 15T, or the maximum 20T. The integrity of this core is the non-negotiable foundation upon which the sling's safety is built.

The protective outer jacket: the first line of defense

While the core bears the load, it is vulnerable to external damage from abrasion, cuts, UV radiation, and chemical exposure. This is where the outer jacket plays its indispensable role. The jacket is a woven tubular sleeve that encases the load-bearing core, serving as its protective shield.

The jacket is typically woven from a durable polyester or polyester-blend webbing. Its primary functions are multifold:

• Abrasion Resistance: It protects the core from being worn down by sharp edges, rough surfaces, or repeated contact during drags or pulls.
• Environmental Protection: It shields the core from dirt, grit, moisture, and direct sunlight, all of which can degrade the synthetic fibers over time.
• Containment: In the highly unlikely event of a core failure, the jacket helps to contain the broken fibers, potentially preventing a catastrophic, whipping failure and adding a small measure of safety.

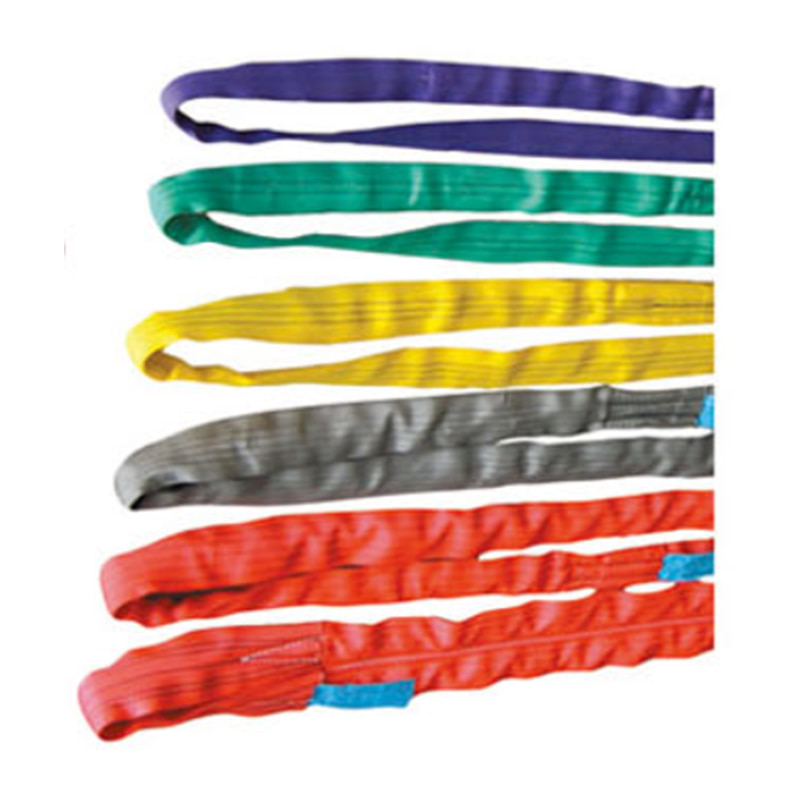

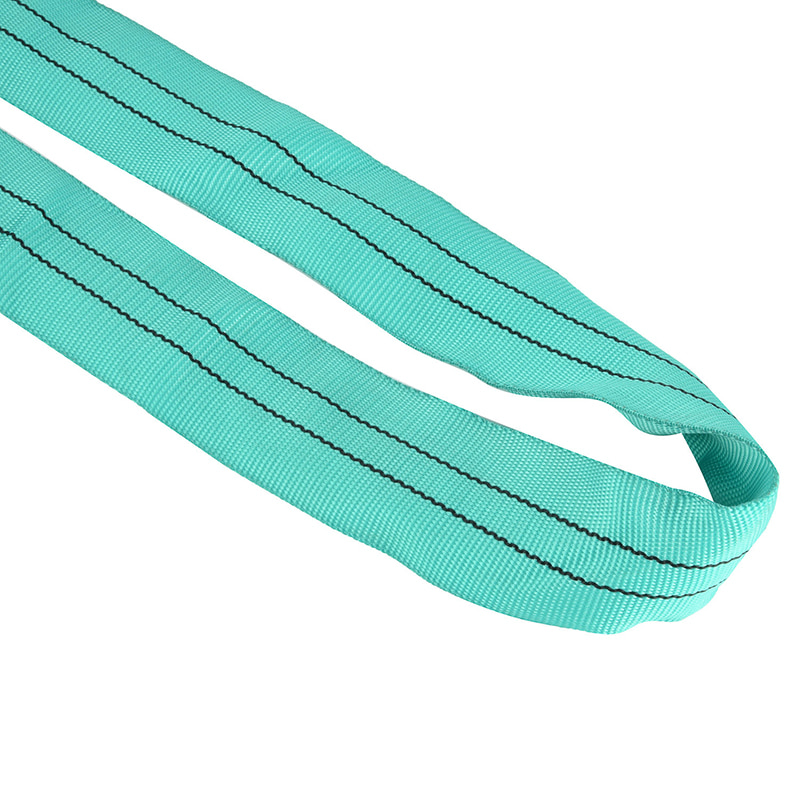

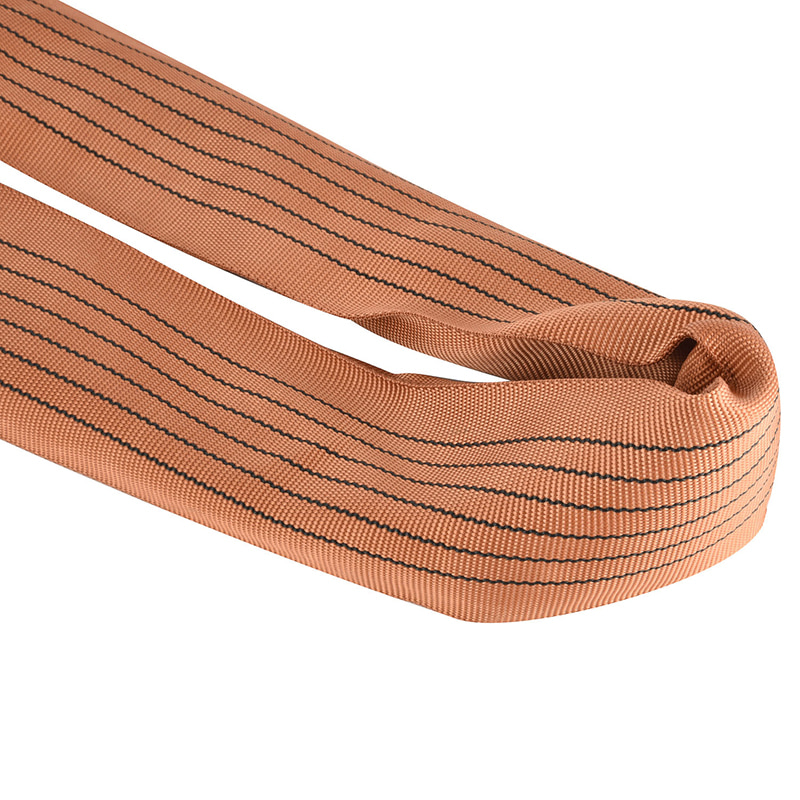

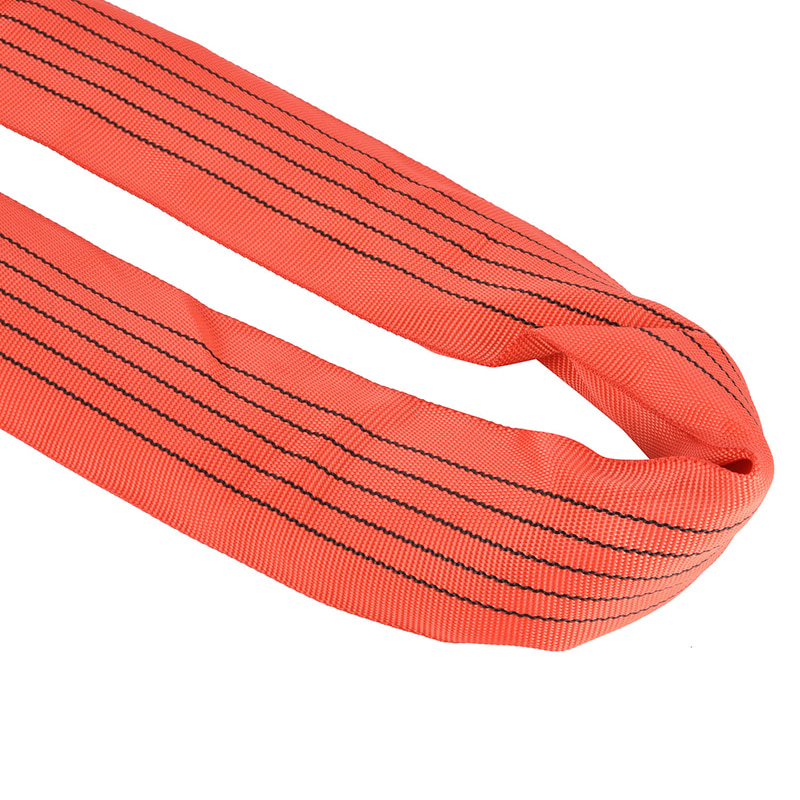

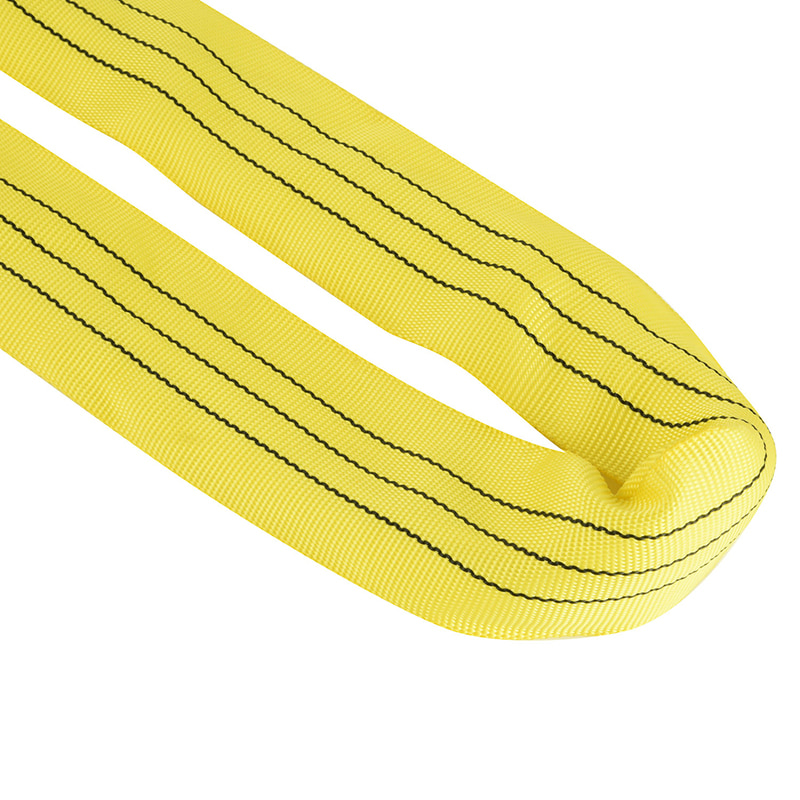

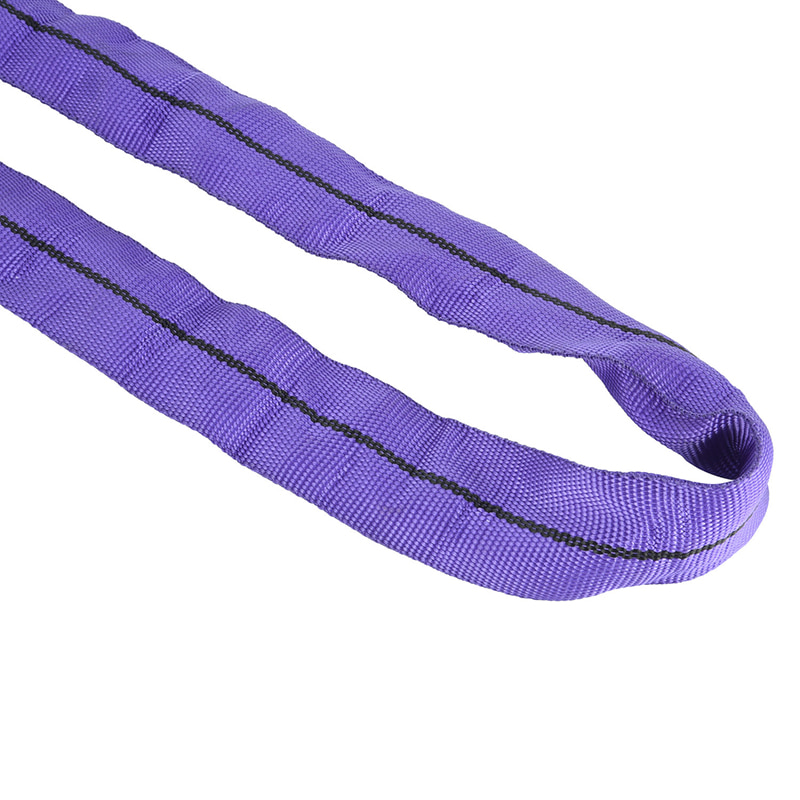

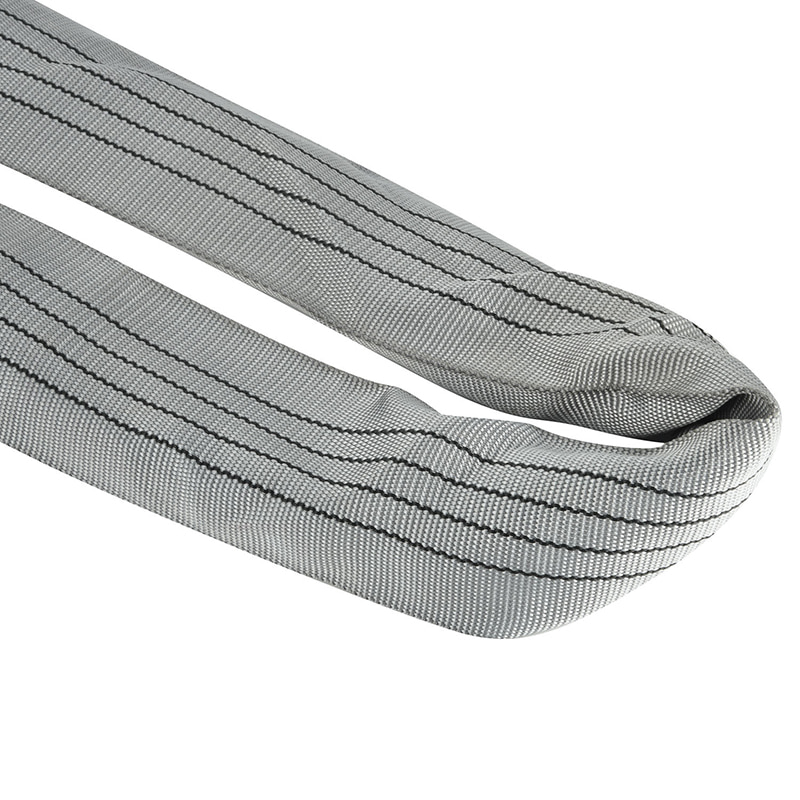

• Identification: Perhaps its most visible function is color-coding. Following a common industry standard, the color of the jacket provides an immediate visual indication of the round sling's capacity.

The relationship between the core and the jacket is intentionally designed to be non-integral. This means the jacket is not stitched or bonded to the core along its length. It is a separate, loose sleeve. This design is crucial for several reasons. It allows the core to tension and elongate freely within the jacket during loading without creating friction points that could burn or chafe the core fibers. It also allows for easy inspection; the jacket can be moved along the core to visually check for any damage to the internal yarns. A high-quality jacket will be tightly woven, resistant to fraying, and capable of withstanding the same environmental challenges as the core it protects.

End terminations: the critical connection points

The components that connect the round sling 1T - 20T to the lifting equipment are known as end terminations or fittings. These are the points where the load is transferred from the crane hook or shackle into the sling body itself, making them arguably the most critical points of stress concentration. The design and integrity of the end terminations are therefore subject to rigorous engineering and manufacturing standards.

There are two primary and approved methods for creating end terminations on a round sling: splicing and stitching.

Splicing is a process where the core yarns and the jacket are woven back into the body of the sling to form a reinforced loop, known as an eye. This creates a incredibly strong and reliable termination with a smooth, seamless appearance. A properly executed splice can achieve 90-95% of the core's original strength, making it the preferred method for the highest-capacity slings, especially those at the upper end of the range like a 15T or 20T round sling. The spliced eye is typically protected with a additional layer of webbing or a wear pad at the point where it would contact the hook, further enhancing its durability.

Stitching is another common and highly reliable method. In this process, the core yarns are looped to form an eye, and then the jacket is folded over and secured with high-strength polyester thread using a specific box-stitch or bar-tack pattern. The type of stitch, the number of rows, and the thread strength are all precisely calculated based on the sling's WLL. For example, a 1T round sling will have a different stitching pattern than a 20T round sling. This stitched region creates a robust and durable connection. Like splicing, stitched eyes often feature a wear pad or label sewn into the choke point to protect both the stitching and the underlying jacket from premature wear.

Regardless of the method, a quality termination will have a few key characteristics: it will be free of any cuts, burns, or abrasions; the stitching will be even and tight with no missing stitches; and the eye will be symmetrical, allowing for a clean and straight attachment to the lifting hook. The choice between spliced or stitched ends often comes down to manufacturer preference and the specific application, though splicing is generally associated with the heaviest-duty applications.

Supporting components and manufacturing integrity

Beyond the three primary components, other elements contribute to the functionality, safety, and longevity of a round sling.

The most important of these is the identification tag. This is a mandatory label, usually made from a durable synthetic material, that is permanently attached to the body of the sling. It is the sling's birth certificate and legal document. A compliant tag must contain, at a minimum:

• The manufacturer's name or trademark.
• The manufacturer's code or stock number.
• The rated Working Load Limit (e.g., 20T) for various hitch types (vertical, choker, basket).
• The core material (e.g., polyester).
• A unique serial number or identification code.

This tag must never be removed. It is the first thing an inspector will check to verify the sling's capacity and legitimacy. Reputable manufacturers ensure these tags are sewn on securely and are made from materials resistant to fading, tearing, and chemical exposure.

Another supporting feature is the wear pad. Often a extra layer of reinforced fabric or a leather-like material, it is stitched onto the jacket at the points of highest abrasion, typically in the center of the eye or at the choke point. This simple addition significantly extends the service life of the sling by sacrificing itself to protect the more critical jacket and core beneath.

Finally, the overarching component that is not physical but absolutely vital is quality control during manufacturing. This encompasses everything from the sourcing of raw yarns to the final inspection of the finished product. It involves:

• Testing incoming yarn for tensile strength and consistency.
• Calibrating braiding and weaving machinery to precise tolerances.
• Training technicians in proper splicing and stitching techniques.
• Conducting 100% proof-testing of finished slings to a load above their rated WLL to ensure integrity.
• Maintaining meticulous records for traceability.

This commitment to manufacturing excellence is what separates a reliable, certified round sling 1T - 20T from a generic and potentially dangerous imitation. Companies that invest in this level of quality control, such as Shanghai TCH Metals & Machinery Co., Ltd., ensure that every sling that leaves their facility performs exactly as engineered, providing the safety and reliability that industries from logistics to construction depend on.

Implications of component quality on performance and safety

The quality and interaction of these components directly dictate the performance characteristics and safe use parameters of the round sling. A sling with a core made from inferior-grade polyester will have a lower resistance to stretch and may fail unexpectedly under its rated load. A jacket with a loose weave will offer little protection, leading to rapid core degradation from abrasion. A poorly stitched or spliced termination is a catastrophic failure waiting to happen, as the connection point is the most highly stressed area.

Furthermore, the components dictate the sling's behavior in different hitches. The vertical hitch utilizes the full, straight-pull capacity of the core (e.g., 10T). The basket hitch can effectively double the capacity by distributing the load across two parts of the sling, but this is dependent on the angle between the legs. The choker hitch, which wraps around the load and passes through its own eye, reduces the capacity due to the sharp bend and increased stress on the jacket and termination. Understanding that the core, jacket, and eyes work as a system is essential for selecting the correct round sling 1T - 20T for a specific lift and for using it within its safe working limits.

The environment also plays a role. Chemicals that degrade polyester will attack both the core and the jacket. Extreme heat, such as from proximity to molten metal or welding slag, can melt or severely weaken the synthetic fibers. UV radiation from long-term outdoor storage will cause embrittlement. Each component must be inspected for signs of environmental damage before every use.
