How does edge sharpness and the angle of lift impact the choice of a webbing sling 1T - 12T?

Introduction: the critical interplay of force, geometry, and material

In the intricate world of lifting and rigging, the selection of equipment is never a mere matter of matching a load's weight to a sling's rated capacity. Such a simplistic approach, while seemingly logical, is a primary contributor to catastrophic failures, workplace accidents, and costly downtime. The true art and science of safe lifting lie in understanding the complex interplay between the equipment's inherent strength and the specific, dynamic conditions of the lift itself. Among the most critical yet frequently underestimated factors are the sharpness of the edges on the load being lifted and the geometric angle at which the sling is deployed. These two variables act as silent multipliers, drastically eroding the nominal safe working load limit (WLL) of a sling, sometimes to a frighteningly small fraction of its advertised value.

These slings, prized for their strength, flexibility, light weight, and ability to protect delicate load finishes, are nevertheless highly susceptible to damage from abrasion and cutting. A thorough grasp of these principles is not just a recommendation; it is an absolute prerequisite for any rigger, safety officer, or procurement manager responsible for lifting operations. While manufacturers like Shanghai TCH Metals & Machinery Co., Ltd. provide high-quality slings that meet and exceed international standards, the ultimate responsibility for their correct application rests with the end-user, making this knowledge universally essential.

Section 1: foundational principles of webbing slings 1T - 12T

Before delving into the specific impacts of edges and angles, it is crucial to establish a firm understanding of the product itself. A webbing sling is a length of high-performance synthetic fabric, most commonly polyester or nylon, constructed in a multi-ply, woven configuration. The 1T to 12T capacity range represents the most versatile and widely used segment in industrial lifting, covering an enormous variety of applications from machinery moving and construction to manufacturing and logistics.

The rated capacity, or working load limit (WLL), of a sling is not an arbitrary number. It is the maximum load that may be applied to that sling in a straight, vertical pull under ideal, controlled conditions. This rating is derived from a complex calculation involving the ultimate breaking strength of the webbing material and the application of a stringent design factor, often 5:1 or 6:1 for polyester. This means a sling rated for 10 tons has a minimum breaking strength of 50 or 60 tons. This built-in safety margin accounts for unseen damage, environmental factors, and minor dynamic forces, but it is not designed to compensate for severe misuse like acute edge contact or high horizontal forces.

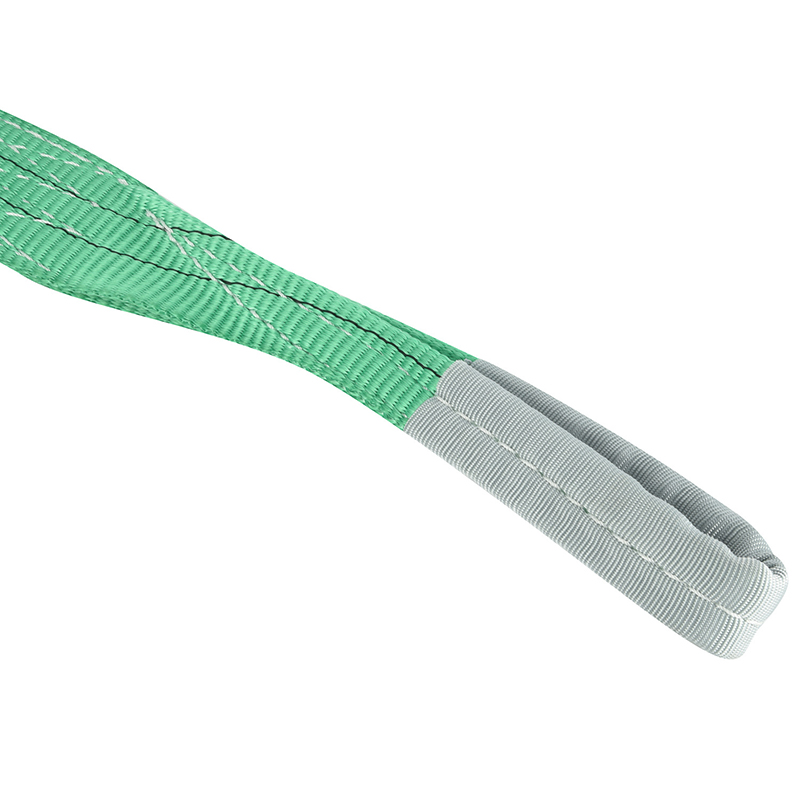

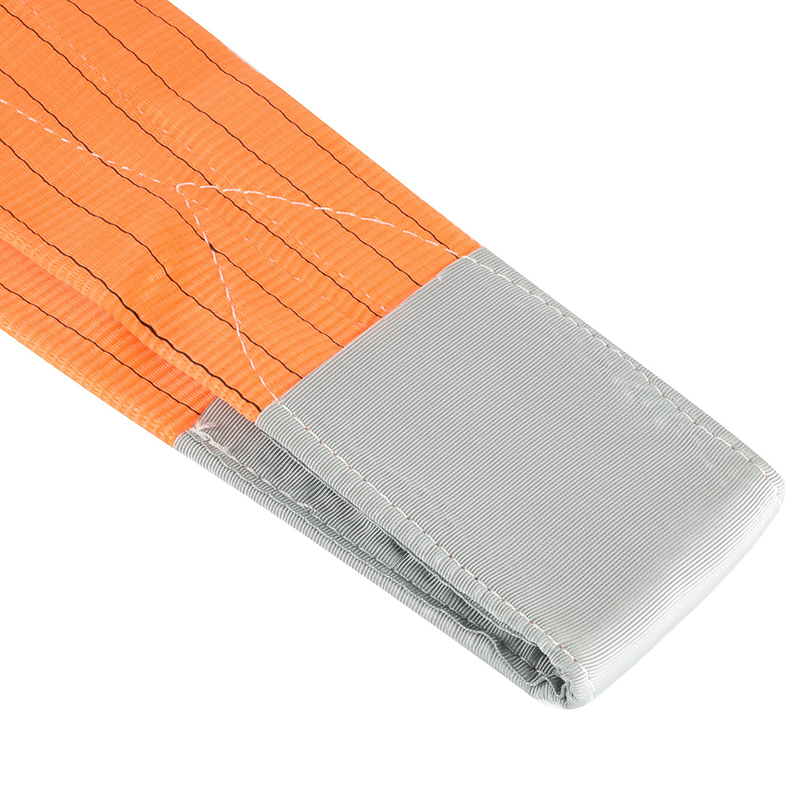

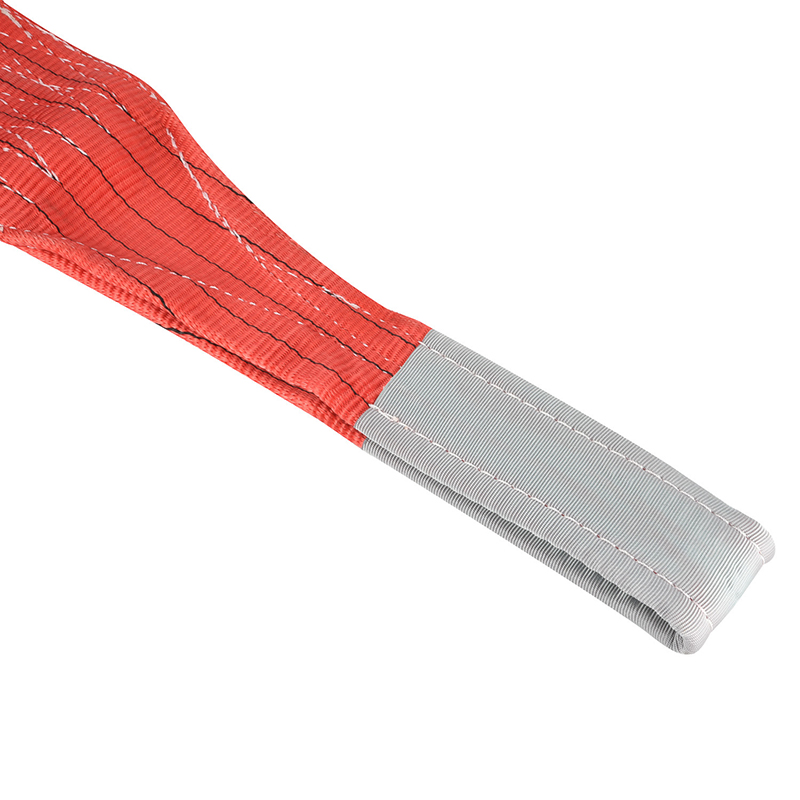

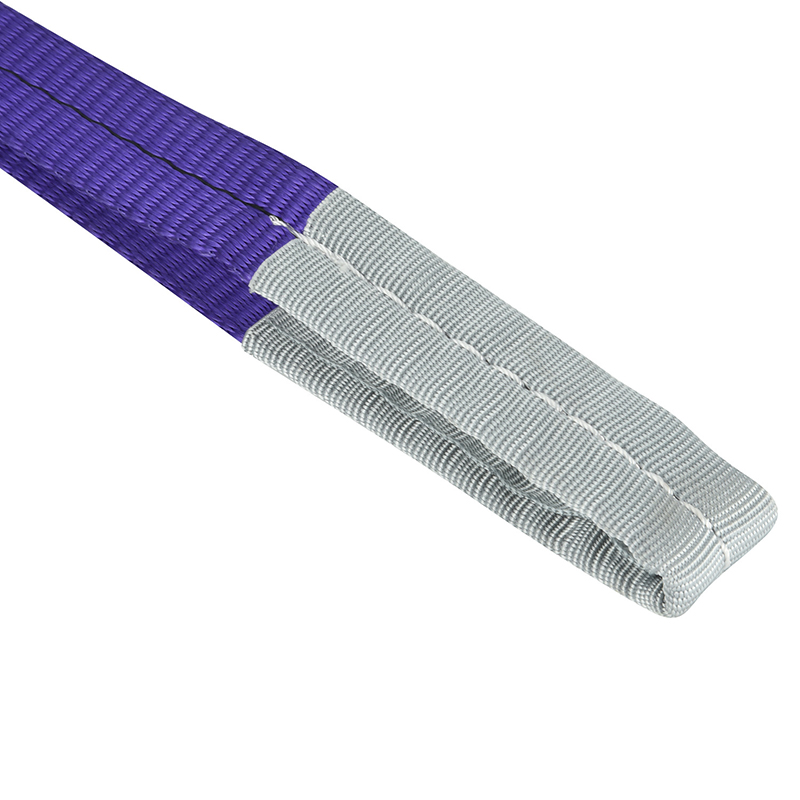

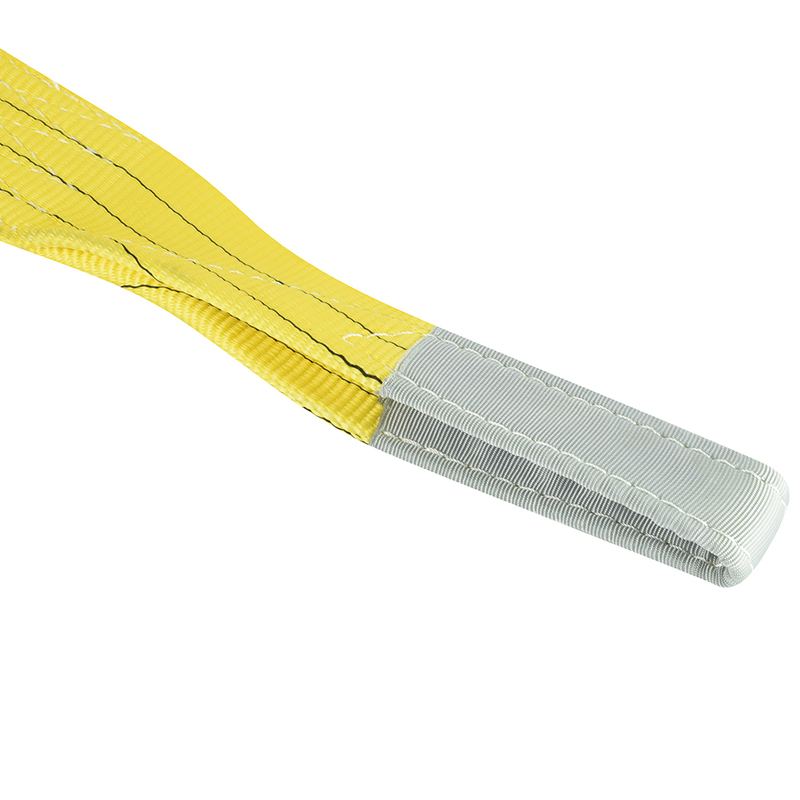

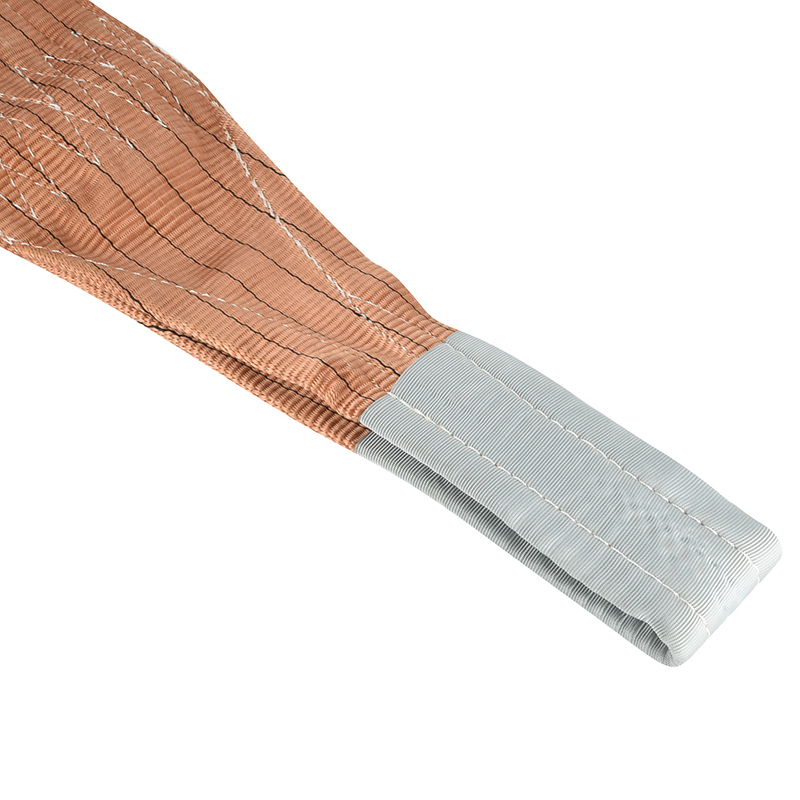

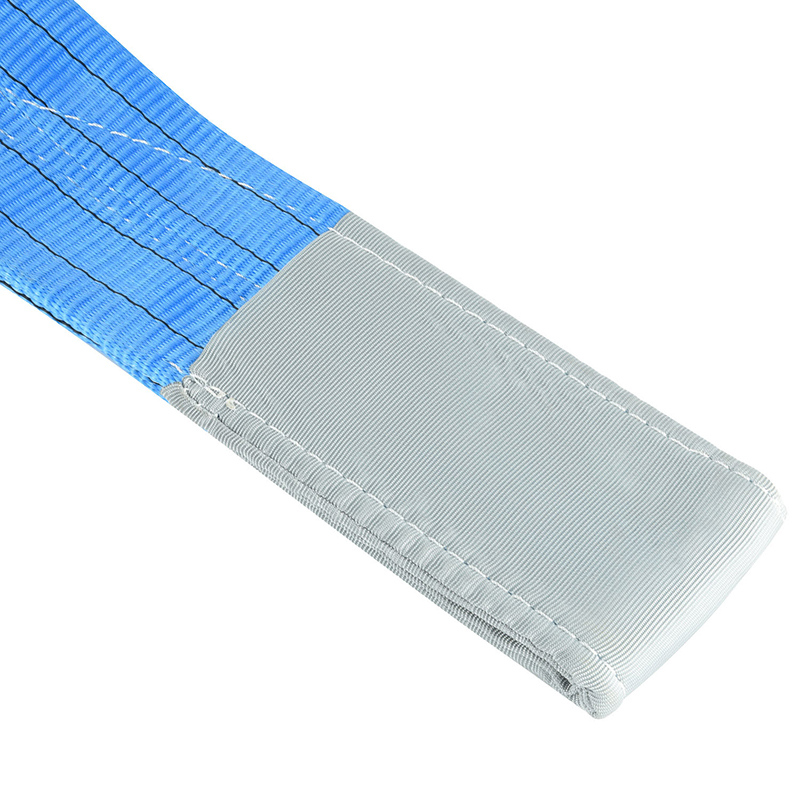

The construction of a webbing sling 1T - 12T is engineered for performance. The weave is tight to resist snagging and particle intrusion. The edges are typically sealed or bound to prevent unraveling. Most importantly, the slings are equipped with permanently affixed identification tags, which are a legal requirement in most jurisdictions. These tags are the sling's birth certificate and logbook, containing indispensable information: the manufacturer's name, the manufacturer's code or stock number, the rated load for various hitch types, the type of webbing material, and the sling length. Ignoring or removing this tag renders the sling unusable, as its capacity and history become unknown.

The advantages of webbing slings are numerous. They are significantly lighter than their wire rope or chain counterparts, reducing worker fatigue and making them easier to handle and deploy. Their flexibility allows them to conform to the shape of the load, providing excellent grip and stability. Furthermore, they are non-sparking, making them ideal for use in potentially explosive atmospheres, and non-conductive, offering a critical safety feature when working near live electrical sources. Perhaps most importantly for many applications, their soft texture prevents marring or damaging expensive painted, polished, or delicate surfaces, a key reason they are the sling of choice in industries like aerospace, fine manufacturing, and energy.

Section 2: the hidden danger - the profound impact of edge sharpness

The threat posed by a sharp edge to a webbing sling is one of the most severe and immediate risks in lifting. Unlike a metal chain, which may be abraded but is highly resistant to cutting under load, the individual fibers of a synthetic web are vulnerable to being severed. The danger is not always obvious; an edge that feels merely “firm” to the touch can become a razor-sharp blade under the immense pressure of a multi-ton load.

The fundamental problem is that the entire weight of the load becomes concentrated on an extremely small area of the sling—the point of contact with the edge. This dramatically increases the pressure (force per unit area) on those specific fibers, far exceeding their tensile strength and causing them to fail. This is a cutting action, not a tensile overload of the entire sling. A sling rated for 6 tons can be severed instantly by a 2-ton load if that load is suspended over an unprotected sharp edge.

The industry classifies edges based on their potential for damage, a critical step in risk assessment:

• Acute Edges: These are edges with a very small radius, typically less than 1/16 inch (1.6 mm). Examples include unfinished steel plate, cast iron fittings, the corners of structural I-beans, and freshly cut pipe. These represent an extreme and immediate danger to any webbing sling and must never be contacted directly without protection.
• Semi-Around Edges: These edges have a larger, more gradual radius, such as on thick-walled tubing, some types of rolled steel, or machined corners. While less dangerous than acute edges, they still present a significant abrasion and cutting hazard, especially under heavy or dynamic loads. A risk assessment is required.
• Well-Rounded Edges: These are edges with a large, smooth radius that presents a minimal cutting threat. Examples include fully rounded bumper edges on machinery or specially designed lifting points. While abrasion resistance is still a consideration, the immediate cutting risk is low.

To combat this universal hazard, a system of edge protection is non-negotiable. The purpose of edge protection is to physically interpose a material between the sharp edge and the sling, thereby distributing the load over a wider area of the sling and preventing the concentration of force. The choice of protector is vital:

• Soft Corner Protectors: These are often plastic or composite sleeves filled with a semi-rigid material. They are excellent for semi-round edges and for protecting the load's finish. They are lightweight and easy to handle.
• Hard Corner Protectors/Rigorous Wear Pads: These are typically made from ultra-high-molecular-weight polyethylene (UHMWPE), aluminum, or hardened steel. They are designed specifically for acute edges and heavy loads. They feature a deep channel for the sling and a hard, smooth surface that slides against the edge, taking the abrasion instead of the sling.
• Webbing Sling with Built-in Wear Pads: For frequent applications involving abrasive surfaces, some webbing slings 1T - 12T come with permanently stitched-on wear pads at the critical points. This integrates the protection but reduces the sling's flexibility at those points.

The selection of the correct edge protector is as important as the selection of the sling itself. The protector must have a WLL compatible with the lift and be made of a material capable of withstanding the pressure and abrasion from the specific edge in question. Using a soft plastic protector on an acute steel edge is likely ineffective and provides a false sense of security.

Section 3: the geometry of force - how lift angle dictates sling capacity

If edge sharpness is a localized threat, the lift angle is a systemic one that affects the entire sling assembly. The angle of lift, defined as the horizontal angle between the sling leg and the horizontal plane, directly and dramatically governs the tension experienced in each leg of the sling. This is a function of basic vector mechanics: as the angle decreases (the sling becomes more horizontal), the tension in each leg increases exponentially.

This relationship is so critical that it is standardized and presented in all reputable sling manufacturer literature and on the sling tags themselves through capacity reduction factors, often presented in a table format.

Table: The effect of lift angle on sling leg tension and effective working load limit.

This table reveals a startling reality. A pair of slings, each rated for 5 tons in a vertical hitch, when used at a 60-degree angle, can only safely lift 87% of their combined vertical rating, or 8.7 tons. At a common but shallow 30-degree angle, their capacity is halved—the two slings together can only lift 5 tons safely. The forces become truly extreme at very shallow angles. At 5 degrees, the tension on each sling leg is over 11 times the weight of the load itself. A 1-ton load would place over 11 tons of tension on each leg, instantly overloading and failing a sling from the 1T - 12T range that is not rated for such force.

The horizontal force component generated by shallow angles introduces another major hazard: load compression. These immense inward forces can crush or deform a load not designed to handle them. Trying to choke a bundle of pipes or a hollow machine casing with a shallow angle can easily collapse or damage the load, even if the slings themselves do not fail.

Therefore, the rigger's goal should always be to achieve as vertical a lift as possible, ideally at an angle of 60 degrees or greater. This minimizes the tension in the legs, maximizes the safe lifting capacity of the equipment, and stabilizes the load by reducing the horizontal squeezing forces. Selecting a longer webbing sling 1T - 12T is often the simplest and most effective way to achieve a safer, more vertical angle, a crucial consideration during the planning stage of any lift.

Section 4: the synthesis - integrated selection for real-world applications

The theoretical dangers of edges and angles are separate concepts, but in practice, they frequently occur simultaneously, creating a compounded risk scenario. A competent rigger or engineer must conduct a holistic assessment that accounts for both factors to select the correct webbing sling. The process is not sequential but integrated.

The first step is always load assessment. This involves determining the total weight of the load, its center of gravity, and the number of legs required for stable lifting. Once the weight and a preliminary sling configuration are known, the rigger must identify all potential contact points between the sling and the load. Each point must be meticulously inspected and classified according to its edge sharpness.

The next step is the most critical: capacity reduction. The rigger must use the worst-case scenario. First, based on the planned lift angle, the effective WLL of the sling is derated using the appropriate factor from the angle table. For example, a 6-ton sling used at a 45-degree angle now has an effective WLL of approximately 4.25 tons (6 tons * 0.71). Second, if a sharp edge is present and the chosen edge protector has its own reduction factor (which it often does, provided by its manufacturer), this must also be applied. The final, usable capacity of the sling for that specific lift is the lowest value derived from this process.

Consider this practical scenario: A rigger needs to lift a 7-ton CNC machine with integrated, un-rounded lifting lugs. The lift will require a two-leg basket hitch with an estimated 50-degree angle. The lugs, while not razor-sharp, are semi-round edges.

• Sling Choice: Two 5-ton webbing slings.
• Step 1 - Angle Derate: A 50-degree angle is roughly equivalent to a 80% efficiency factor. The effective WLL per sling is now 4 tons (5 tons * 0.80). The combined capacity for two slings is 8 tons, which is above the 7-ton load. This seems acceptable.
• Step 2 - Edge Assessment: The semi-round edges require a hard corner protector. The protector's documentation indicates it has a 75% efficiency factor when used on such edges.
• Step 3 - Final Calculation: The final, usable capacity per sling leg is the lesser of the angle-derated value or the protector-derated value. 4 tons (from angle) vs. 3.75 tons (5 tons * 0.75 from protector). The protector's limitation governs. The combined safe working capacity is now 7.5 tons (2 legs * 3.75 tons).
• Conclusion: The lift is feasible but operates at 93% of the sling assembly's final rated capacity (7 tons / 7.5 tons = 0.93). The rigger must ensure the angle does not decrease below 50 degrees and that the protectors are correctly positioned. A more conservative approach would be to use 6-ton slings for this lift, providing a larger safety margin.

This example illustrates that the presence of an edge often becomes the governing factor in sling selection, forcing the use of a heavier-duty webbing sling 1T - 12T than the load weight alone would suggest. The integrated selection process is a continuous feedback loop: if the initial sling choice does not provide sufficient derated capacity, the solution is to select a sling with a higher initial WLL, improve the edge protection, or, most effectively, change the rigging geometry to achieve a more vertical angle by using longer slings or adjusting the lift points.

Section 5: beyond selection - inspection, maintenance, and storage

Selecting the correct webbing sling 1T - 12T for the job is only the first part of its lifecycle. Its ongoing reliability and safety are ensured through a rigorous regime of inspection, proper maintenance, and correct storage. A sling that has been compromised is no longer fit for purpose, regardless of its original rating or the care taken in selection.

Inspection is divided into three formal types:

1. Initial Inspection: Before any new or repaired sling is placed into service, it must be inspected by a designated authority to ensure it matches the order specifications and has no manufacturing defects.
2. Frequent Inspection: This is a visual assessment performed by the user before each and every use. It is a quick but thorough check for obvious damage, soiling, or wear.
3. Periodic Inspection: This is a more detailed inspection conducted at regular intervals, typically quarterly or annually, based on frequency of use, severity of service, and industry standards. It must be performed by a designated and trained inspector who documents the findings.

The inspector must be trained to recognize the specific types of damage that afflict webbing slings:

• Abrasions: Noticeable wearing away of the surface fibers, often creating a fuzzy appearance. The depth and area of abrasion are critical factors.
• Cuts, Tears, and Snags: Any broken yarns in the body of the webbing or the folded edge. This is often a reason for immediate removal.
• Chemical Damage: Evidence of chemical exposure, such as discoloration, brittle or stiff sections, or a tacky feel. Different chemicals affect polyester and nylon differently.
• Heat or Melting Damage: Hard, glazed, or melted spots that have fused the fibers together. Synthetic slings have specific maximum working temperature limits.
• Broken or Worn Stitching: The failure of the load-bearing stitches, particularly in the eye splices or terminations.
• Knots: Knots must never be tied in a webbing sling 1T - 12T. They create severe stress concentrations that can reduce the breaking strength by over 50%.
• Missing or Illegible Tag: A sling without a legible, factory-installed tag must be removed from service immediately.

Proper maintenance involves cleaning slings only with mild soap and water and allowing them to dry thoroughly away from direct heat sources. They should be stored in a cool, dry, dark place, hung on racks or laid flat, never crumpled in a bin where they can develop hard-to-see damage from UV exposure, moisture, or pests.
