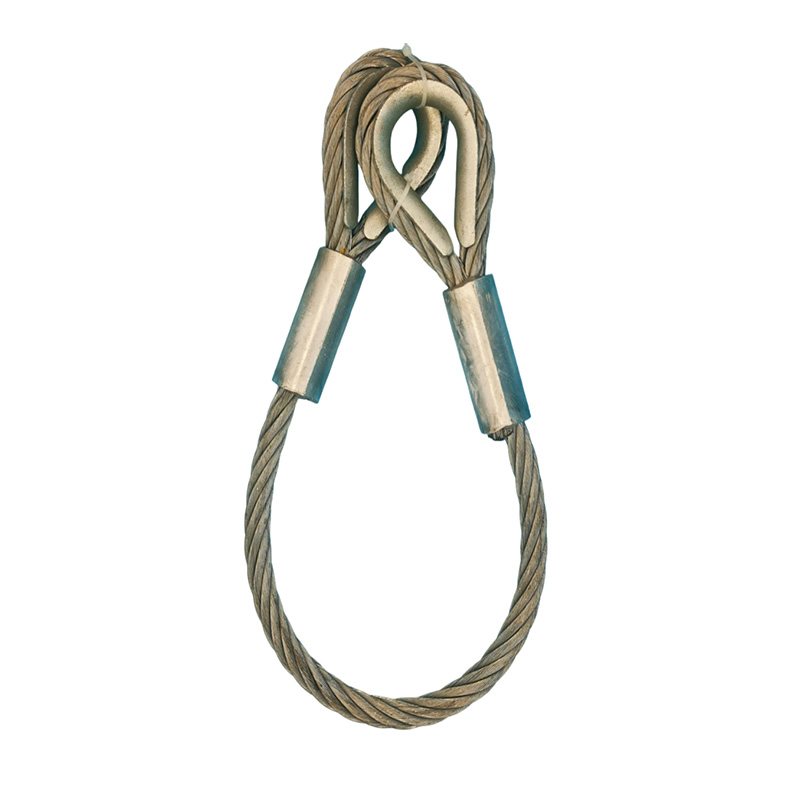

Custom Steel Wire Rope Sling

What are the most common types of damage and failure modes for a steel wire rope sling?

Introduction: The Critical Role of Wire Rope Slings

In the intricate ballet of heavy industry, construction, logistics, and manufacturing, the safe and efficient movement of loads is paramount. At the heart of countless lifting operations lies a component whose integrity is non-negotiable: the steel wire rope sling. These slings are the vital link between a crane's hook and the load being lifted, entrusted with immense weight and the safety of personnel and assets below. Understanding their failure modes is not merely a technical exercise; it is a fundamental pillar of operational safety and risk management. A steel wire rope sling is an assembly, often incorporating fittings like hooks, eyes, or master links, designed to form a connection for lifting. Its performance is a direct function of its material properties, construction, use, and, crucially, the care taken in its inspection and maintenance.

The consequences of sling failure can be catastrophic, leading to severe injury, loss of life, significant property damage, and major operational downtime. Therefore, a deep, practical knowledge of how and why a steel wire rope sling can degrade is essential for every individual involved in its specification, selection, and use. This article provides a meticulous examination of the most common types of damage and failure modes that afflict these indispensable tools. By learning to identify the early signs of degradation, personnel can make informed decisions to retire a sling from service before it reaches a critical state.

As a company with over two decades of experience in the manufacturing and global distribution of rigging hardware, Shanghai TCH Metals & Machinery Co., Ltd. has developed a profound understanding of the real-world challenges faced by sling users. This expertise, gained from supplying robust products to demanding sectors like construction, logistics, and heavy manufacturing across North America, Europe, and Japan, informs a commitment to not only providing high-quality slings but also to promoting the knowledge necessary for their safe lifetime use.

Section 1: The Anatomy of a Wire Rope Sling and Its Inherent Vulnerabilities

To understand failure, one must first understand the object itself. A steel wire rope sling is a complex mechanical structure, not a simple homogeneous bar of metal. Its strength and flexibility come from its multi-component design, but each component also represents a potential point of failure.

A typical wire rope is composed of three key elements:

• Wires: The smallest element, individual steel filaments drawn to a specific diameter.
• Strands: A group of wires helically laid around a central core.
• Core: The foundational element running through the center of the rope. It can be a fiber core (FC), which provides flexibility and internal lubrication, or an independent wire rope core (IWRC), which provides greater strength and resistance to crushing.

These components are laid in a specific pattern, known as the rope's construction (e.g., 6x19 IWRC, 7x19 FC). The sling is created by forming this rope into a specific configuration—such as a single leg, bridle, basket, or choker hitch—and attaching terminals, or end fittings. These fittings, which can be swaged, pressed, or mechanically attached, are themselves critical points that must be inspected rigorously.

The inherent vulnerability of a steel wire rope sling stems from its duty cycle. It is constantly subjected to a combination of tensile stresses, bending fatigue, abrasion, and environmental attack. Over time, these forces work to degrade the individual wires and the bonds between them. The goal of inspection and maintenance is to monitor this degradation and remove the sling from service long before the cumulative damage compromises its load-bearing capacity.

Section 2: Mechanical Wear and Abrasion – The Slow Grind

The most common and visually obvious form of damage to a steel wire rope sling is external mechanical wear. This occurs when the sling's exterior wires rub against surfaces, other slings, or the load itself during lifting, moving, and lowering operations.

A. Types of Abrasive Wear:

• General External Wear: This is the uniform loss of material from the outside wires of the strands. It smooths the outer contours of the wires, reducing their diameter. While some wear is expected over a sling's life, excessive wear critically weakens the rope by reducing its metallic cross-sectional area, which directly lowers its breaking strength.
• Grooving or Necking: This occurs when a sling is repeatedly used over a sharp edge or a sheave (pulley) with an incompatible diameter. The constant pressure and friction create a localized groove, severely compromising the rope at that specific point. This type of wear is particularly dangerous as it concentrates stress.
• Peening: This is the hammering or flattening of the outer wires. It is often caused by the sling being slammed against hard surfaces or dragged across the ground. Peening work-hardens the wire, making it brittle and more susceptible to cracking.

B. Contributing Factors:

• Dragging Slings: Pulling a sling across abrasive surfaces like concrete or steel decking is a primary cause of rapid wear.
• Improper Use of Pads and Protectors: Failure to use corner pads or edge protectors when a sling must go over a sharp edge accelerates grooving wear exponentially.
• Poor Rope-to-Sheave Ratio: Using a wire rope on a sheave that is too small forces the rope to bend too sharply, increasing internal and external friction and wear.
• Grit and Grime Infiltration: Abrasive particulate matter (dirt, sand, metal filings) can become embedded in the rope, acting like sandpaper against the internal wires every time the rope flexes.

Section 3: Fatigue Failure – The Unseen Crack

Fatigue is an insidious and often misunderstood failure mode. Unlike abrasive wear, which is plainly visible, fatigue can initiate and propagate inside the rope with little to no external evidence until a sudden failure occurs. Fatigue is the progressive and localized structural damage that occurs when a material is subjected to cyclic loading. For a steel wire rope sling, this means the repeated application and release of load, or the constant bending and straightening over a sheave.

A. Types of Fatigue:

• Bending Fatigue: This is the most common form. It occurs when a wire rope is bent around a sheave or other curvature. The individual wires on the outside of the bend are stretched (placed in tension), while those on the inside are compressed. With each cycle, micro-cracks begin to form on the surface of the wires, eventually growing until the wire breaks. These breaks often have a characteristic square-ended, crystalline appearance.
• Tension-Tension Fatigue: This occurs even without bending, simply from the repeated application and removal of a load. While less common in slings than in running ropes (like those on a crane), it can be a factor in applications with rapid, repetitive lift cycles.

B. Identifying Fatigue:
The primary evidence of fatigue is the presence of multiple broken wires. However, the location and pattern of these breaks are critical for diagnosis:

• Randomly Distributed Broken Wires: A few broken wires scattered along the length of the rope often indicate general fatigue or aging.
• Localized Breaks at a Fitting: Breaks concentrated at a socket or ferrule can indicate fatigue induced by a poor termination or a point of high stress concentration.
• Breaks in “Valleys”: Breaks occurring in the troughs between strands suggest internal fatigue, often caused by high internal stresses or a lack of lubrication.

Fatigue failure is a primary reason why visual inspection is not always sufficient. A sling might appear superficially sound but be riddled with internal wire breaks. This underscores the importance of retired slings being cut open for training purposes to reveal this hidden damage.

Section 4: Overloading and Shock Loading – The Instant Catastrophe

Every steel wire rope sling is rated with a specific Working Load Limit (WLL), which is the maximum mass it is designed to lift in a particular configuration under normal service conditions. The WLL is derived by applying a design factor (often 5:1) to the minimum breaking force of the rope. Overloading occurs when a load exceeds this WLL, placing stresses on the wires that can cause immediate, permanent damage or instantaneous failure.

A. Types of Overloading:

• Static Overload: This is the application of a single, sustained load that exceeds the sling's WLL. This can cause yielding, where the wires and strands permanently stretch and deform, destroying the rope's original construction and strength. The sling will often appear “necked down” or elongated in the section where the yielding occurred.
• Shock (Dynamic) Loading: This is far more dangerous and common. It occurs when a load is suddenly applied to the sling, such as by jerking the load off the ground, a sudden stop while moving, or the load snagging on an obstruction. The dynamic force generated can be many times the static weight of the load, easily exceeding the sling's ultimate strength and causing immediate, catastrophic failure. There is no warning with a shock load.

B. Contributing Factors and Dangers:
Shock loading is often a result of poor rigging practices, miscommunication between the crane operator and the rigger, or a lack of understanding of the forces involved. The danger is twofold: first, it can cause immediate failure; second, a shock load that does not break the sling can create hidden internal damage. Wires may be weakened or develop micro-cracks that significantly reduce the sling's strength for all future lifts, turning it into a ticking time bomb. This is why any sling known to have been subjected to a severe shock load must be immediately removed from service and inspected with extreme rigor, if not destroyed.

Section 5: Corrosion – The Chemical Assault

Steel's greatest weakness is its susceptibility to corrosion (rust) when exposed to oxygen and moisture. For a steel wire rope sling, corrosion is a relentless enemy that attacks from both the outside and, more dangerously, the inside.

A. Types and Effects of Corrosion:

• Surface Corrosion: This is the visible red rust that forms on the exterior wires. While it looks bad, surface rust itself may not immediately affect strength, but it is a clear sign that the sling is in a harmful environment and that the protective lubricant has been compromised. More importantly, it is the precursor to more severe damage.
• Pitting Corrosion: This occurs when surface corrosion penetrates deeply into the wire, creating small pits or cavities. These pits act as stress concentrators, becoming initiation points for fatigue cracks. The cross-sectional area of the wire is also reduced at the pit, weakening it.
• Internal Corrosion: This is the most perilous form. Moisture and corrosive agents (like chlorides in a marine environment or chemicals in industrial settings) can wick down into the core of the rope. Trapped inside, they attack the internal wires and the core itself. This damage is completely hidden from view and can utterly destroy the rope's strength and flexibility without any external warning signs. A sling can appear superficially sound but have its core completely rusted away.

B. Contributing Environments:
Marine and offshore operations, chemical plants, fertilizer storage, and food processing facilities are high-risk environments. However, even ordinary outdoor storage or use in humid climates can lead to significant corrosion if the sling is not properly maintained and stored.

Section 6: Abuse, Misuse, and Malpractice

Many sling failures are not due to a single technical phenomenon but are the direct result of improper handling and use. This category encompasses a wide range of damaging practices that accelerate all the failure modes described above.

• Kinking: This is a permanent deformation caused by incorrectly coiling or uncoiling a new rope, creating a sharp bend that permanently distorts the lay of the strands. A kink creates a severe weak point. A kinked rope must be discarded immediately; it cannot be straightened.
• Birdcaging: This is the forced expansion of the outer strands away from the core, forming a birdcage-like appearance. It is caused by torsional overload, often when a multi-layer rope is forced to rotate or when one end of a load is fixed while the other is free to rotate.
• Crushing/Flattening: This occurs when a rope is pinched between a heavy load and a hard surface or run over by heavy equipment. It flattens the rope's cross-section, damaging wires and disrupting the careful alignment of its components.
• Heat Damage: Exposure to high temperatures, whether from a torch, welding spatter, or proximity to a furnace, can alter the heat treatment of the steel wires. This anneals (softens) the steel, dramatically reducing its strength. Evidence can include blueing or discoloration of the metal, charring of a fiber core, or a noticeable loss of stiffness.
• Improper Hitch Selection: Using a choker hitch when a basket hitch is appropriate, or vice versa, can drastically reduce the effective WLL and place dangerous stresses on the sling and the load.
• Electrical Arc Damage: If a sling contacts a live electrical source, the arcing can instantly melt and fuse wires together, creating an extremely brittle section that will fail without warning.

Section 7: Termination and End Fitting Failures

The points where the wire rope is connected to its end fittings (e.g., hooks, eyes, links) are critical stress concentration zones. Failure here is just as common as failure in the rope body.

• Swaged/Pressed Fittings: These fittings are attached by cold-working a metal sleeve onto the rope. Failure can occur if the swaging process was defective (under-swaged or over-swaged), if the sleeve cracks, or if the rope pulls out of the fitting due to loss of retention force.
• Mechanical Splice (Fist-Grip or Wedge Socket): These use a wedge to grip the rope. Failure can happen if the wedge is incorrectly installed, if the “dead” end of the rope is not secured according to manufacturer instructions, or if the socket itself cracks.
• Cracking or Bending of Hooks and Links: Fittings themselves can fail due to overloading, wear at the throat or saddle, or cracking from fatigue. The hook opening (“hook gap”) can widen, which is a critical danger sign.
