| Diameter | Nominal tensile strength of rope (N/mm2) | Approx mass (Kg/100m) |
||||||||
| Rope | Wire | 1520 | 1670 | 1810 | 1960 | |||||
| center | 1st layer | 2nd layer | wire core | Total wires break down force | ||||||
| large | small | |||||||||
| mm | KN(Not less than) | |||||||||
| 8 | 0.6 | 0.55 | 0.6 | 0.45 | — | 39.73 | 43.65 | 47.31 | 51.23 | 24.31 |
| 9.2 | 0.7 | 0.65 | 0.7 | 0.5 | — | 53.44 | 58.72 | 63.64 | 68.91 | 32.7 |
| 11 | 0.8 | 0.75 | 0.8 | 0.6 | 0.4 | 71.7 | 78.77 | 85.38 | 92.45 | 43.87 |
| 12 | 0.9 | 0.85 | 0.9 | 0.65 | 0.45 | 89.77 | 98.63 | 106.9 | 115.8 | 54.93 |
| 13.5 | 1 | 0.95 | 1 | 0.75 | 0.5 | 113 | 124.2 | 134.6 | 145.8 | 69.16 |
| 14.5 | 1.1 | 1.05 | 1.1 | 0.8 | 0.55 | 135.5 | 148.9 | 161.3 | 174.7 | 82.9 |
| 16 | 1.2 | 1.15 | 1.2 | 0.9 | 0.6 | 163.8 | 179.9 | 195 | 211.2 | 100.2 |
| 17.5 | 1.3 | 1.25 | 1.3 | 1 | 0.65 | 194.8 | 214 | 231.9 | 251.2 | 119.2 |
| 19 | 1.4 | 1.35 | 1.4 | 1.05 | 0.7 | 223.9 | 246 | 266.6 | 288.7 | 137 |
| 19 | 1.4 | 1.35 | 1.4 | 1.05 | 0.7 | 223.9 | 246 | 266.6 | 288.7 | 137 |

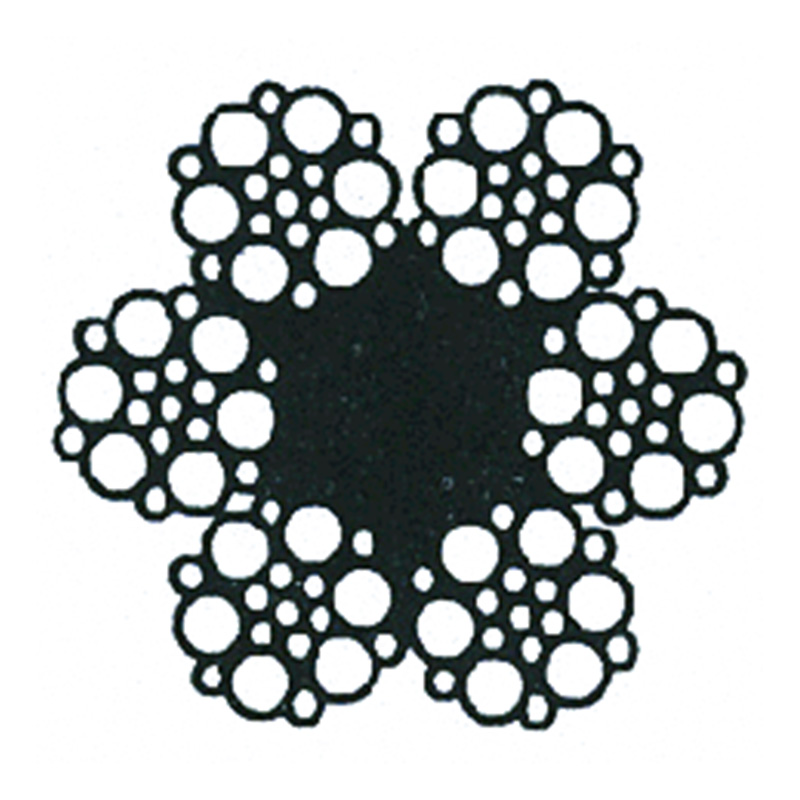

| Construction : Strands(1+6+6/6) | ||||||||||
| Rope Fiber cores wire core | ||||||||||
| Main applications: Various equipment for elevating, lifting and drawing, the rope with wire core can be used under the shock load, heated and squeezed conditions such as electric shovel, molten steel moving mechanism, etc. | ||||||||||
