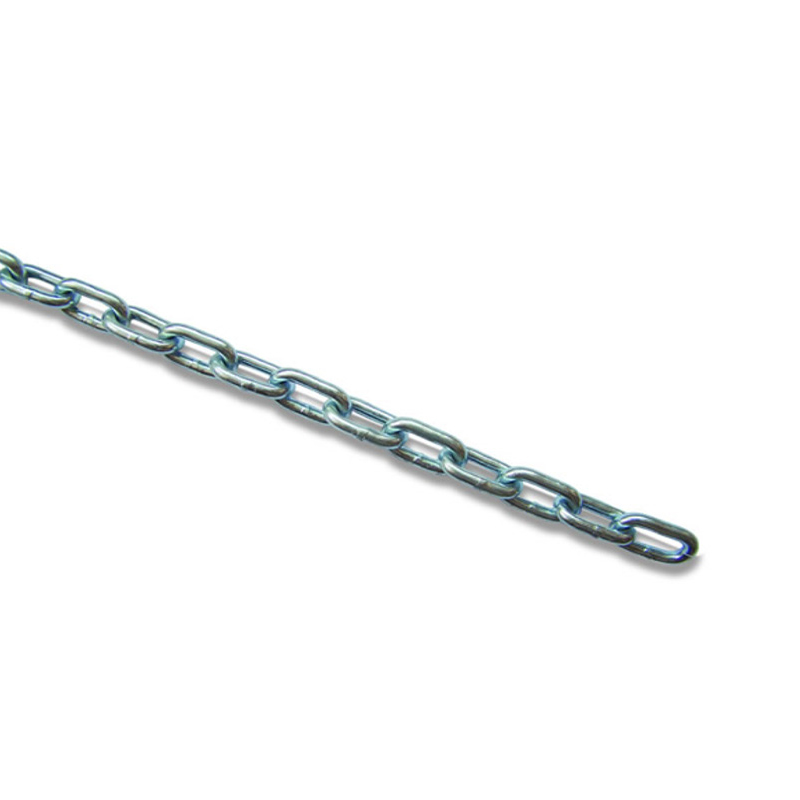

G30 Proof Coil Chain
  • G30 Proof Coil Chain
  • G30 Proof Coil Chain

G30 Proof Coil Chain

Product Category：American Standard Chain

Features：

Get A Quote
PREV：G70 Binder Chain
NEXT：G43 High Test Chain
Description
ASTM80

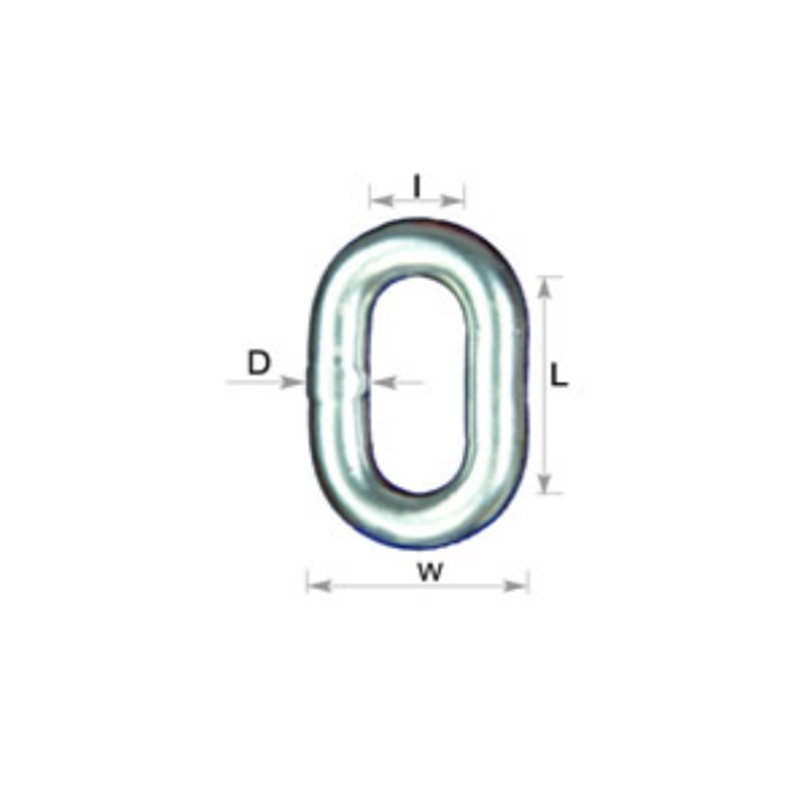

Size Material Diameter Working Load
Limit (Max.)		 Proof Test
(Min.)		 Minimum Breaking Force Inside Length (Max.) Inside Width (Min.)
IN MM IN MM LBS KG LBS KN LBS KN IN MM IN MM
  4.0  0.156 4.0  400  180  800  3.6  1,600  7.2  0.94 23.9  0.25  6.4
  5.5  0.217 5.5  800  365  1,600  7.2  3,200  14.4  0.98 24.8  0.30  7.7
  7.0  0.276 7.0  1,300  580  2,600  11.6  5,200  23.2  1.24 31.5  0.38  9.8
  8.0  0.331 8.4  1,900  860  3,800  16.9  7,600  33.8  1.29 32.8  0.44  11.2
  10.0  0.394 10.0  2,650  1,200  5,300  23.6  10,600  47.2  1.38 35.0  0.55  14.0
  11.9  0.468 11.9  3,700  1,680  7,400  32.9  14,800  65.8  1.64 41.6  0.65  16.6
  13.0  0.512 13.0  4,500  2,030  9,000  40.0  18,000  80.0  1.79 45.5  0.72  18.2
  16.0  0.630  16.0  6,900  3,130  13,800  61.3  27,600  122.6  2.20  56.0  0.79  20.0
  20.0  0.787 20.0  10,500  4,800  21,200  94.3  42,400  188.6  2.76 70.0  0.98  25.0
  22.0  0.866 22.0  12,800  5,810  25,600  114.1  51,200  228.2  3.03 77.0  1.08  27.5
1 26.0  1.020  26.0  17,900  8,140  35,800  159.1  71,600  318.2  3.58 90.9  1.25  31.7



NACM2003
Size Material Diameter Working Load
Limit (Max.)		 Proof Test
(Min.)		 Minimum Breaking Force Inside Length (Max.) Inside Width (Min.)
IN MM IN MM LBS KG LBS KN LBS KN IN MM IN MM
1/8 4.0  0.156 4.0  400  180  800  3.6  1,600  7.2  0.94 23.9  0.25  6.4
3/16 5.5  0.217 5.5  800  365  1,600  7.2  3,200  14.4  0.98 24.8  0.30  7.7
1/4 7.0  0.276 7.0  1,300  580  2,600  11.6  5,200  23.2  1.24 31.5  0.38  9.8
5/16 8.0  0.331 8.4  1,900  860  3,800  16.9  7,600  33.8  1.29 32.8  0.44  11.2
3/8 10.0  0.394 10.0  2,650  1,200  5,300  23.6  10,600  47.2  1.38 35.0  0.55  14.0
7/16 11.9  0.468 11.9  3,700  1,680  7,400  32.9  14,800  65.8  1.64 41.6  0.65  16.6
1/2 13.0  0.512 13.0  4,500  2,030  9,000  40.0  18,000  80.0  1.79 45.5  0.72  18.2
5/8 16.0  0.630  16.0  6,900  3,130  13,800  61.3  27,600  122.6  2.20  56.0  0.79  20.0
3/4 20.0  0.787 20.0  10,500  4,800  21,200  94.3  42,400  188.6  2.76 70.0  0.98  25.0
7/8 22.0  0.866 22.0  12,800  5,810  25,600  114.1  51,200  228.2  3.03 77.0  1.08  27.5
1 26.0  1.020  26.0  17,900  8,140  35,800  159.1  71,600  318.2  3.58 90.9  1.25  31.7
