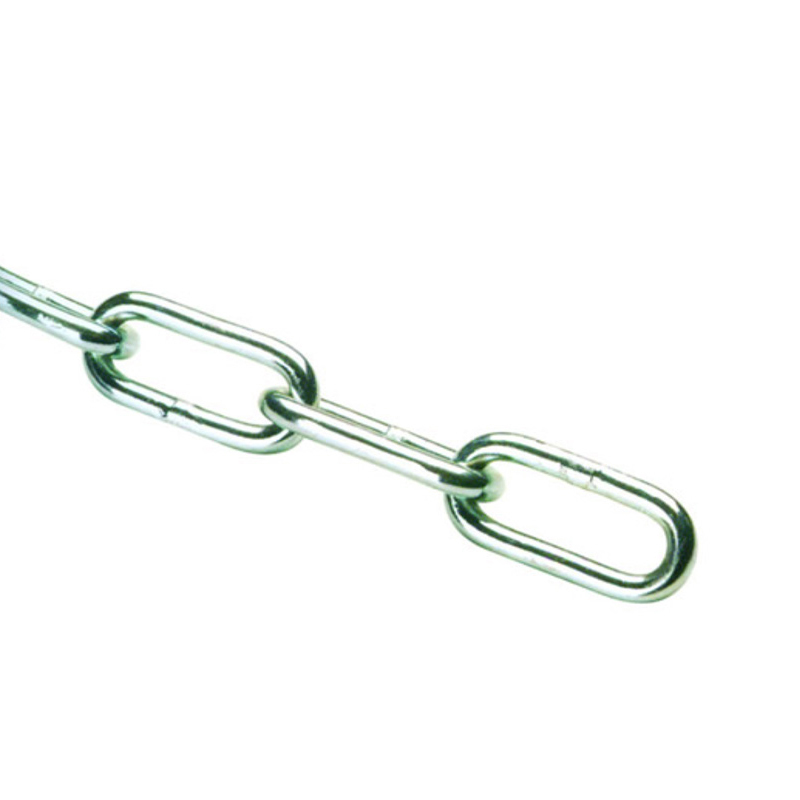

DIN763 Link Chain
  • DIN763 Link Chain
  • DIN763 Link Chain

DIN763 Link Chain

Product Category：DIN Standard Chain

Features：

Get A Quote
PREV：DIN764 Link Chain
NEXT：No next article
Description

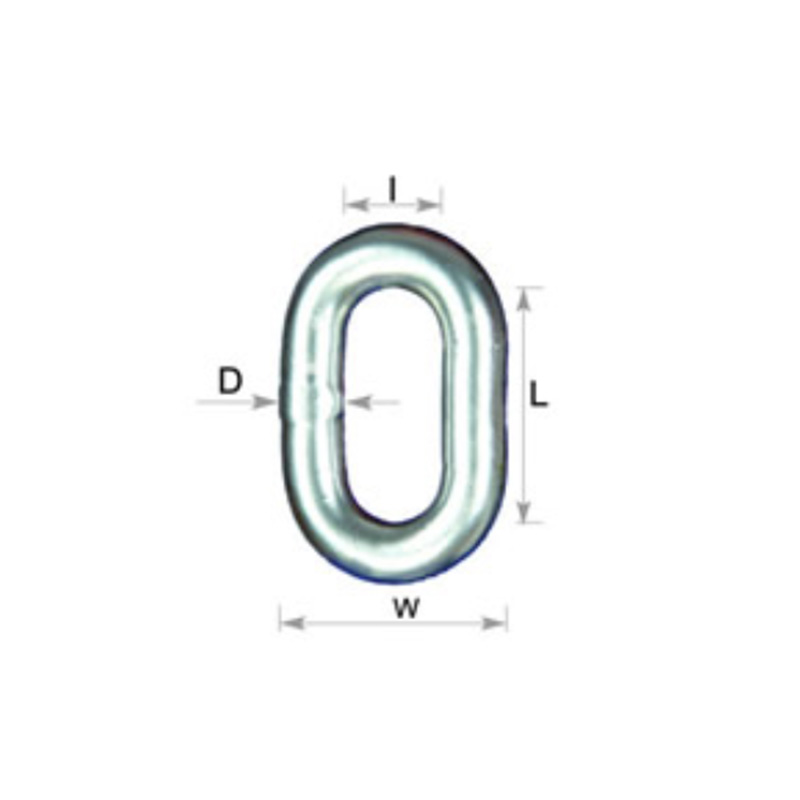

Chain Size Inside Length Outside Width Working Load Test Force Min. Breaking Force
D tolerance L tolerance W tolerance
mm ± mm mm ± mm mm ± mm kg kN kN
2.0  ± 0.10 22.0  ± 1.0 8.0  ± 0.4 25.0  0.5  1.3
2.5  ± 0.12 24.0  ± 1.1 10.0  ± 0.5 40.0  0.8  2.0
3.0  ± 0.15 26.0  ± 1.2 12.0  ± 0.6 55.0  1.1  3.2
3.5  ± 0.20 28.0  ± 1.3 14.0  ± 0.7 80.0  1.5  3.9
4.0  ± 0.20 32.0  ± 1.5 16.0  ± 0.8 100.0  2.5  6.5
4.5  ± 0.23 34.0  ± 1.7 18.0  ± 0.9 128.0  3.0  8.0
5.0  ± 0.25 35.0  ± 1.8 20.0  ± 1.0 160.0  4.0  10.0
5.5  ± 0.25 38.5  ± 1.8 22.0  ± 1.1 195.0  4.2  10.5
6.0  ± 0.30 42.0  ± 2.0 24.0  ± 1.2 200.0  5.0  12.0
7.0  ± 0.35 49.0  ± 2.5 28.0  ± 1.4 300.0  7.5  19.0
8.0  ± 0.40 52.0  ± 2.5 32.0  ± 1.6 400.0  10.0  25.0
8.5  ± 0.40 56.0  ± 2.8 34.0  ± 1.7 460.0  10.2  25.5
9.0  ± 0.50 59.0  ± 3.0 36.0  ± 1.8 530.0  10.5  32.0
10.0  ± 0.50 65.0  ± 3.2 40.0  ± 2.0 630.0  16.0  40.0
11.0  ± 0.50 72.0  ± 3.4 44.0  ± 2.0 790.0  15.8  47.5
12.0  ± 0.60 78.0  ± 3.6 48.0  ± 2.3 940.0  18.8  56.5
13.0  ± 0.65 82.0  ± 4.0 52.0  ± 2.5 1000.0  25.0  63.0
16.0  ± 0.80 100.0  ± 5.0 64.0  ± 3.2 1600.0  40.0  100.0
18.0  ± 0.90 113.0  ± 5.2 70.0  ± 3.2 2120.0  42.3  127.0
19.0  ± 0.90 119.0  ± 5.6 72.0  ± 3.4 2370.0  47.3  142.0
20.0  ± 1.00 120.0  ± 6.0 75.0  ± 3.8 2500.0  50.0  160.0
22.0  ± 1.20 127.0  ± 6.0 82.0  ± 4.0 3170.0  63.3  190.0
25.0  ± 1.30 140.0  ± 6.6 85.0  ± 4.2 4090.0  81.7  245.0
28.0  ± 1.40 152.0  ± 7.0 96.0  ± 4.7 6000.0  120.0  300.0
32.0  ± 1.60 171.0  ± 7.8 108.0  ± 5.2 8000.0  160.0  400.0
