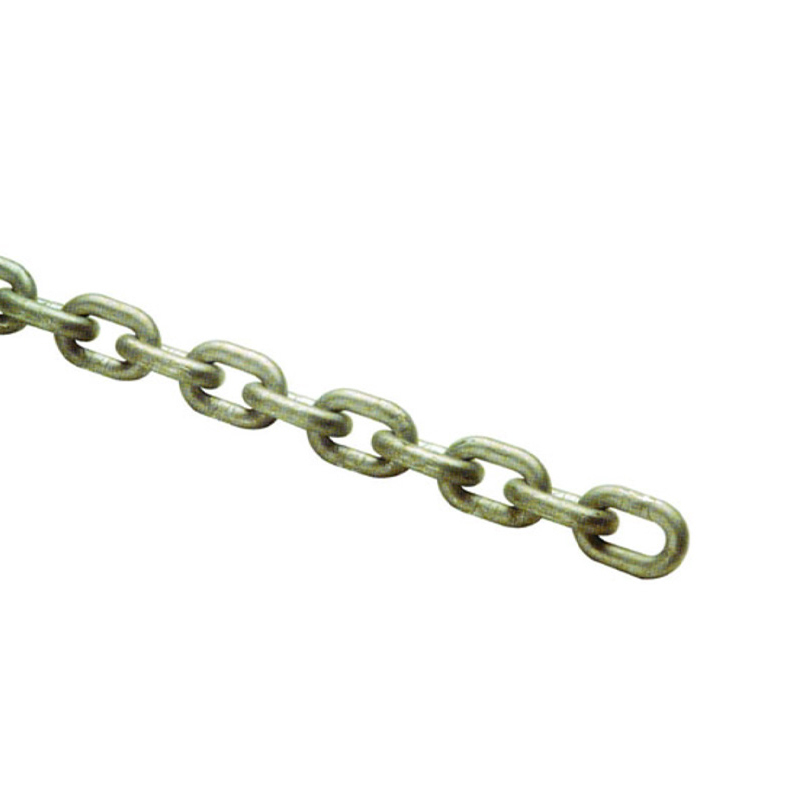

DIN766 Link Chain
  • DIN766 Link Chain
  • DIN766 Link Chain

DIN766 Link Chain

Product Category：DIN Standard Chain

Features：

Get A Quote
PREV：DIN5685 A&C Short/Long Link Chain
NEXT：DIN764 Link Chain
Description
Chain Size Inside Length Min. Inside Width Max.Outside Width Length per 11 Links Working Load Test Force Min. Breaking Force
D tolerance L tolerance 11 L tolerance
mm mm mm mm mm kg kN kN
4 ±0.2 16 0.3 -0.2 4.8 13.6 176 0.8 -0.4 200 5 8
5 ±0.2 18.5 0.4 -0.2 6 17 204 0.9 -0.5 320 8 12.5
6 ±0.2 18.5 0.4 -0.2 7.2 20.4 204 0.9 -0.5 400 10 16
7 ±0.3 22 0.4 -0.2 8.4 23.8 242 1.1 -0.5 630 16 25
8 ±0.3 24 0.4 -0.2 9.6 27.2 264 1.2 -0.6 800 20 32
9 ±0.4 27 0.5 -0.3 10.8 30.6 297 1.3 -0.7 1,000 25 40
10 ±0.4 28 0.5 -0.3 12 36 308 1.4 -0.7 1,250 32 50
11 ±0.4 31 0.5 -0.3 13.2 40 341 1.5 -0.8 1,600 40 63
13 ±0.5 36 0.6 -0.3 15.6 47 396 1.7 -0.9 2,000 50 80
14 ±0.6 41 0.7 -0.4 16.8 50 451 2 -1 2,500 63 100
16 ±0.6 45 0.8 -0.4 19.2 58 495 2.2 -1.1 3,200 80 125
18 ±0.9 50 0.8 -0.4 21.6 65 550 2.5 -1.2 4,000 100 160
20 ±1.0 56 1 -0.5 24 72 616 2.8 -1.4 5,000 125 200
23 ±1.2 64 1.1 -0.5 27.6 83 704 3.2 -1.6 6,300 160 250
26 ±1.3 73 1.2 -0.6 31.2 94 803 3.6 -1.8 8,000 200 320
28 ±1.4 78 1.3 -0.6 33.6 101 858 3.8 -2 10,000 250 400
30 ±1.5 84 1.4 -0.7 36 108 924 4.2 -2.1 11,200 280 450
32 ±1.6 90 1.5 -0.7 38.4 115 990 4.5 -2.2 12,500 320 500
36 ±1.8 101 1.7 -0.8 43.2 130 1,111 5 -2.5 16,000 400 630
40 ±2.0 112 1.9 -0.8 48 144 1,232 5.6 -2.8 20,000 500 800
42 ±2.1 118 2 -1 50 151 1,298 5.8 -3 22,400 560 900
