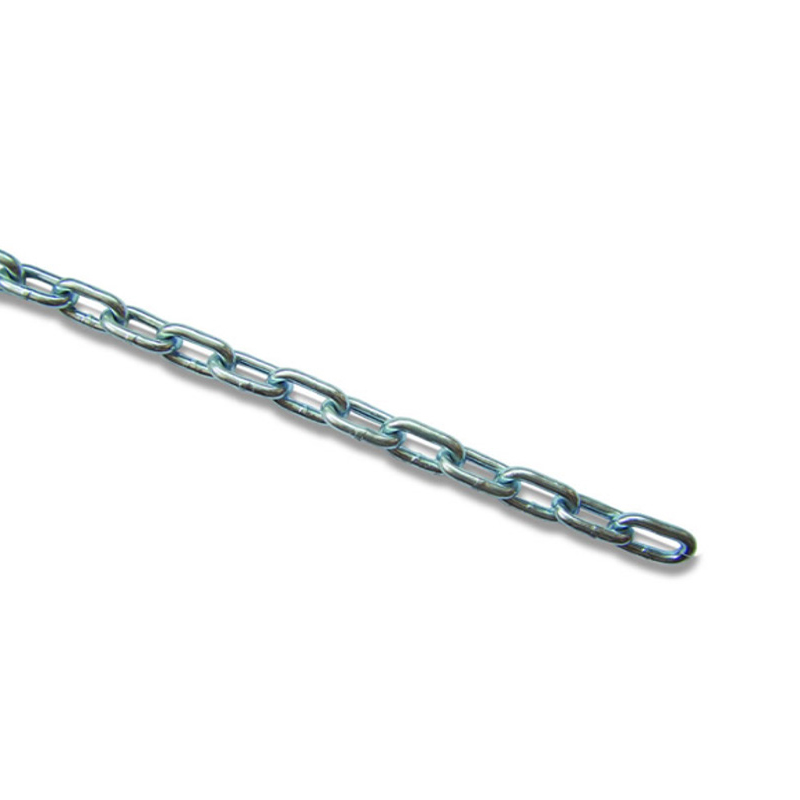

G43 High Test Chain
  • G43 High Test Chain
  • G43 High Test Chain

G43 High Test Chain

Product Category：American Standard Chain

Features：

Get A Quote
PREV：G30 Proof Coil Chain
NEXT：G70 Transport Chain
Description
ASTM80

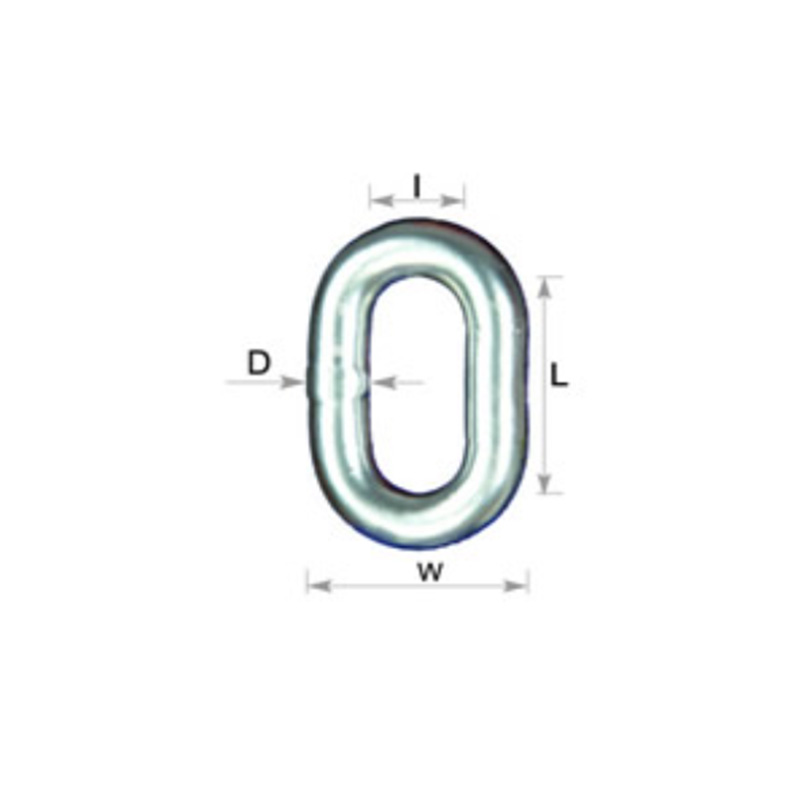

Size Material Diameter Working Load
Limit (Max.)		 Proof Test
(Min.)		 Minimum Breaking Force Inside Length (Max.) Inside Width (Min.)
IN MM IN MM LBS KG LBS KN LBS KN IN MM IN MM
  7.0  0.276 7.0  2,600  1,180  3,900  17.3  7,800  34.6  1.24 31.5  0.38  9.8
  8.7  0.343 8.7  3,900  1,770  5,850  26.0  11,700  52.0  1.29 32.8  0.44  11.2
  10.0  0.406 10.3  5,400  2,450  8,100  36.0  16,200  72.0  1.38 35.0  0.55  14.0
  11.9  0.468 11.9  7,200  3,270  10,800  48.0  21,600  96.0  1.64 41.6  0.65  16.6
  13.0  0.531 13.5  9,200  4,170  13,800  61.3  27,600  122.6  1.79 45.5  0.72  18.2
  16.0  0.630  16.0  13,000  5,910  19,500  86.5  39,000  173.0  2.20  56.0  0.79  20.0
  20.0  0.787 20.0  20,200  9,180  30,300  134.7  60,600  269.4  2.76 70.0  0.98  25.0
  22.0  0.866 22.0  24,500  11,140  36,750  163.3  73,500  326.6  3.03 77.0  1.08  27.5



NACM2003
Size Material Diameter Working Load
Limit (Max.)		 Proof Test
(Min.)		 Minimum Breaking Force Inside Length (Max.) Inside Width (Min.)
IN MM IN MM LBS KG LBS KN LBS KN IN MM IN MM
1/4 7.0  0.276 7.0  2,600  1,180  3,900  17.3  7,800  34.6  1.24 31.5  0.38  9.8
5/16 8.7  0.343 8.7  3,900  1,770  5,850  26.0  11,700  52.0  1.29 32.8  0.44  11.2
3/8 10.0  0.406 10.3  5,400  2,450  8,100  36.0  16,200  72.0  1.38 35.0  0.55  14.0
7/16 11.9  0.468 11.9  7,200  3,270  10,800  48.0  21,600  96.0  1.64 41.6  0.65  16.6
1/2 13.0  0.531 13.5  9,200  4,170  13,800  61.3  27,600  122.6  1.79 45.5  0.72  18.2
5/8 16.0  0.630  16.0  13,000  5,910  19,500  86.5  39,000  173.0  2.20  56.0  0.79  20.0
3/4 20.0  0.787 20.0  20,200  9,180  30,300  134.7  60,600  269.4  2.76 70.0  0.98  25.0
7/8 22.0  0.866 22.0  24,500  11,140  36,750  163.3  73,500  326.6  3.03 77.0  1.08  27.5
