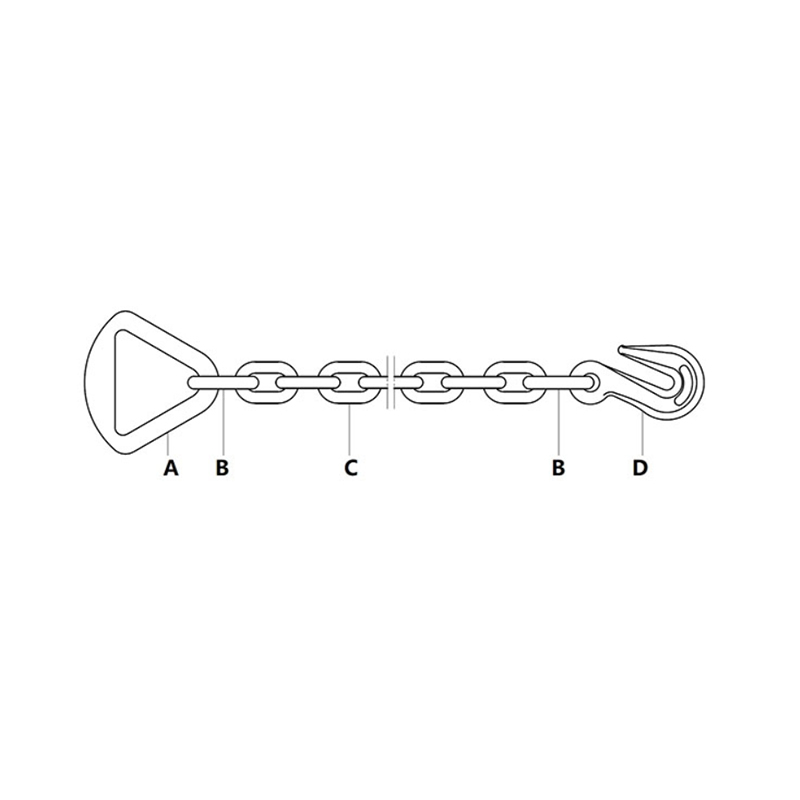

| Item no. | Delta Ring | Coupling Link | Chain | Grab Hook | Length | Weight | Working Load Limit | Min. Breaking Force | |
| A | B | C | D | ||||||
| SJH-001 | 2" | 3/8" | 5/16" | 11 LINKS | 5/16" | 18" | 1.10 kg | 3330 lbs | 10000 lbs |
| SJH-002 | 2" | 3/8" | 5/16" | 11 LINKS | 3/8" | 18" | 1.25 kg | 3330 lbs | 10000 lbs |
| SJH-009 | 2" | 5/16" | 45295 | 14 LINKS | 5/16" | 18" | 0.80 kg | 3330 lbs | 10000 lbs |
| SJH-003 | 3" | 7/16" | 5/16" | 10 LINKS | 5/16" | 18" | 1.35 kg | 5400 lbs | 16200 lbs |
| SJH-004 | 3" | 7/16" | 3/8" | 9 LINKS | 3/8" | 18" | 1.70 kg | 5400 lbs | 16200 lbs |
| SJH-005 | 3" | 7/16" | 3/8" | 5 LINKS | 3/8" | 12" | 1.45 kg | 5400 lbs | 16200 lbs |
| SJH-006 | 4" | 7/16" | 3/8" | 9 LINKS | 3/8" | 18" | 1.95 kg | 6660 lbs | 20000 lbs |
| SJH-007 | PEAR LINK | 3/8" | 5/16" | 10 LINKS | 5/16" | 18" | 1.30 kg | 3660 lbs | 11000 lbs |
| SJH-008 | PEAR LINK | 7/16" | 3/8" | 9 LINKS | 3/8" | 18" | 1.60 kg | 5400 lbs | 16200 lbs |
