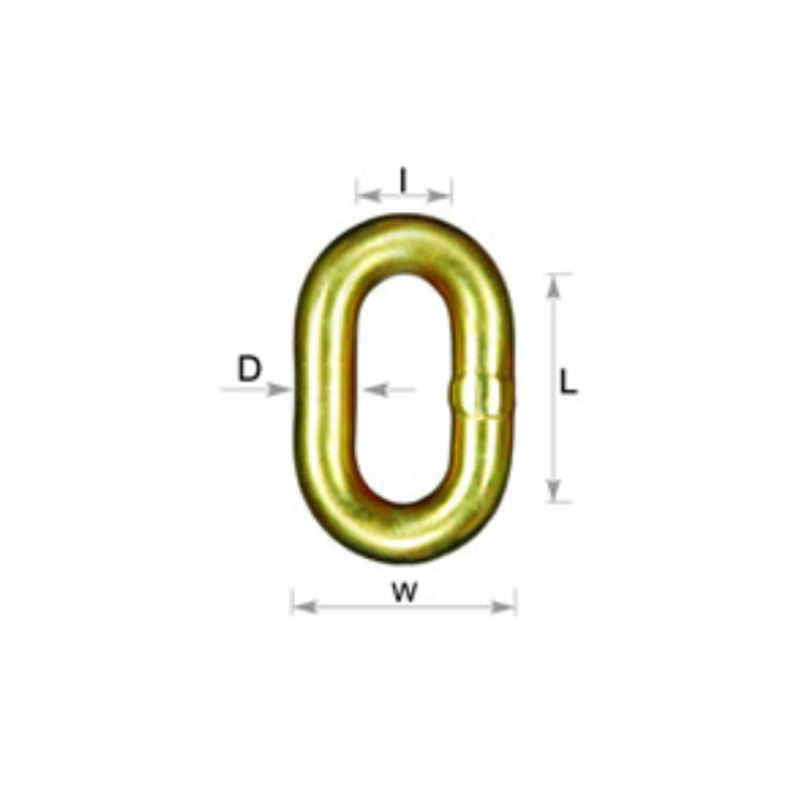

| Chain Size | Working Load | Link Dimension | Length per 100kg | |||
| Diameter | Inside Length | Outside Width | Self Color | H.D.G. | ||
| mm | tonnes | mm | mm | mm | meters | meters |
| 6 | 6.3 | 18.9 | 22.05 | 0.88 | 555 | 526 |
| 7 | 7.1 | 21.3 | 24.85 | 18.6 | 345 | 323 |
| 7.3 | 7.3 | 24.0 | 26.60 | 21.8 | 217 | 206 |
| 8 | 8.0 | 24.0 | 28.0 | 26.1 | 135 | 128 |
| 10 | 10.0 | 30.0 | 35.0 | 31.9 | 82.2 | 78.1 |
| 13 | 13.0 | 39.0 | 45.5 | 38.7 | 52.9 | 50.2 |
| Chain Size | Inside Length | Width | Min. Breaking Strength | Lashing Capacity | Weight | ||
| Max. | Min. | Max. | Min. | ||||
| mm | mm | mm | mm | mm | kN | kg | kg/m |
| 6 | 18.9 | 17.33 | 22.05 | 7.88 | 44.1 | 2,300 | 0.81 |
| 7 | 21.3 | 19.53 | 24.85 | 8.88 | 55.9 | 2,900 | 1.09 |
| 7.3 | 24 | 22 | 26.6 | 10 | 58.9 | 3,000 | 1.16 |
| 8 | 24 | 22 | 28 | 10 | 73.6 | 3,800 | 1.42 |
| 10 | 30 | 27.5 | 35 | 12.5 | 118 | 6,000 | 2.22 |
| 13 | 39 | 35.75 | 45.5 | 16.25 | 176 | 9,000 | 3.75 |
