Heavy Duty Stainless Steel Chain

Home / Products / Chain / Stainless Steel Chain / Asutralian Stainless Steel Chain
Asutralian Stainless Steel Chain
  • Asutralian Stainless Steel Chain
  • Asutralian Stainless Steel Chain

Asutralian Stainless Steel Chain

Product Category：Stainless Steel Chain

Features：

Get A Quote
PREV：Cart Stainless Steel Chain
NEXT：ANTI Stainless Steel Chain
Description
Australian Standard Short Link Chain

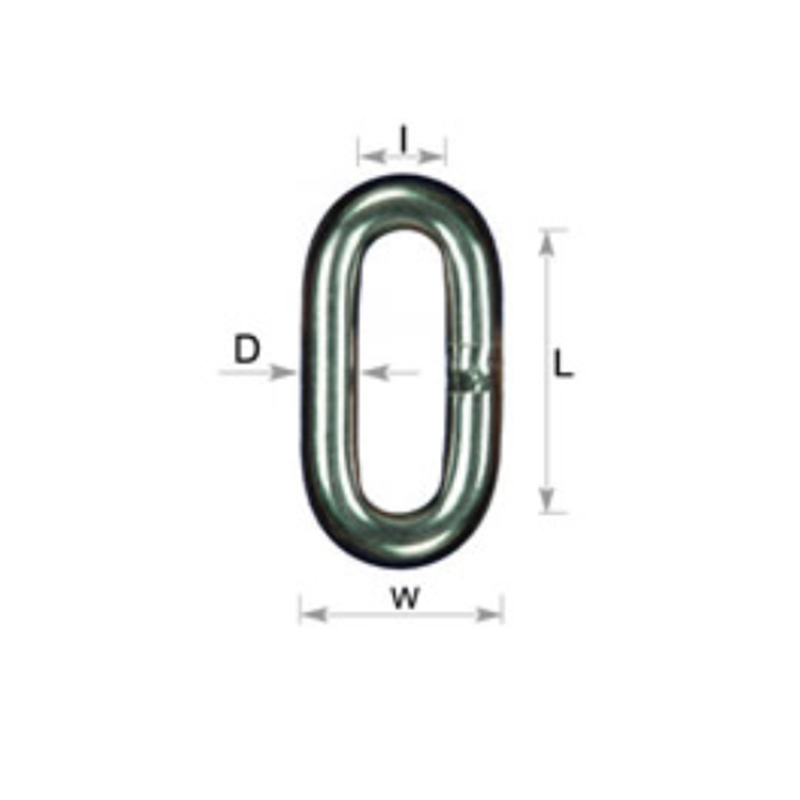

Chain Size Working Load Link Dimension Length per 100kg
Diameter Inside Length Outside Width Self Color H.D.G.
mm tonnes mm mm mm meters meters
5 0.24 5 14.6 17.2 174 167
6 0.32 6.3 18.9 21.5 114 108
8 0.53 8 24 27.5 70.5 67
10 0.83 10 29.5 33.5 45.2 42.9
12 1.5 12.5 37.5 40.6 29.5 28
13 1.6 13 38.8 44.6 26.9 26.3
16 2.31 16 47 54 17.6 16.7
20 3.45 20 59.2 68.5 11.3 11.1
22 4.55 22 64.9 77 9.5 9.2
24 5.43 24 71 82.2 7.8 7.6



Australian Standard Medium Link Chain
Chain Size Working Load Link Dimension Length per 100kg
Diameter Inside Length Outside Width Self Color H.D.G.
mm tonnes mm mm mm meters meters
3 0.06 3.15 15.7 13.1 511 498
4 0.11 4 18.6 16 320 305
5 0.19 5 22 19.4 203 193
6 0.32 6.3 26.1 23.5 129 120
8 0.53 8 32.2 29.5 77.8 74.1
10 0.83 10 39.1 36.2 48.5 47.1
12 1.35 12 46 44 34 33.3
13 1.5 13 49.1 46.1 29.7 27.7
16 2.31 16 59.6 56.5 20.2 18.2
20 3.67 20 73.3 70 12.3 11.6
24 5.31 24 87 83.6 8.5 8



Australian Standard Long Link Chain
Chain Size Working Load Link Dimension Length per 100kg
Diameter Inside Length Outside Width Self Color H.D.G.
mm tonnes mm mm mm meters meters
3 0.05 3.15 22.1 15.7 555 526
4 0.09 4 25.4 18.6 345 323
5 0.19 5 29.3 21.8 217 206
6 0.32 6.3 34.5 26.1 135 128
8 0.53 8 41.2 31.9 82.2 78.1
10 0.83 10 49 38.7 52.9

50.2



Australian Standard Link Chain Grade 70 Chain
Chain Size Working Load Link Dimension Length per 100kg
Diameter Inside Length Outside Width Self Color H.D.G.
mm tonnes mm mm mm meters meters
6 6.3 18.9 22.05 0.88 555 526
7 7.1 21.3 24.85 18.6 345 323
7.3 7.3 24.0 26.60 21.8 217 206
8 8.0 24.0 28.0 26.1 135 128
10 10.0 30.0 35.0 31.9 82.2 78.1
13 13.0 39.0 45.5 38.7 52.9 50.2



Australian Standard Link Chain Grade 70 Chain
Chain Size Inside Length Width Min. Breaking Strength Lashing Capacity Weight
Max. Min. Max. Min.
mm mm mm mm mm kN kg kg/m
6 18.9 17.33 22.05 7.88 44.1 2,300 0.81
7 21.3 19.53 24.85 8.88 55.9 2,900 1.09
7.3 24 22 26.6 10 58.9 3,000 1.16
8 24 22 28 10 73.6 3,800 1.42
10 30 27.5 35 12.5 118 6,000 2.22
13 39 35.75 45.5 16.25 176 9,000 3.75
