Heavy Duty Stainless Steel Chain

Home / Products / Chain / Stainless Steel Chain / DIN764 Stainless Steel Chain
DIN764 Stainless Steel Chain
  • DIN764 Stainless Steel Chain
  • DIN764 Stainless Steel Chain

DIN764 Stainless Steel Chain

Product Category：Stainless Steel Chain

Features：

Get A Quote
PREV：DIN766 Stainless Steel Chain
NEXT： DIN763 Stainless Steel Chain
Description

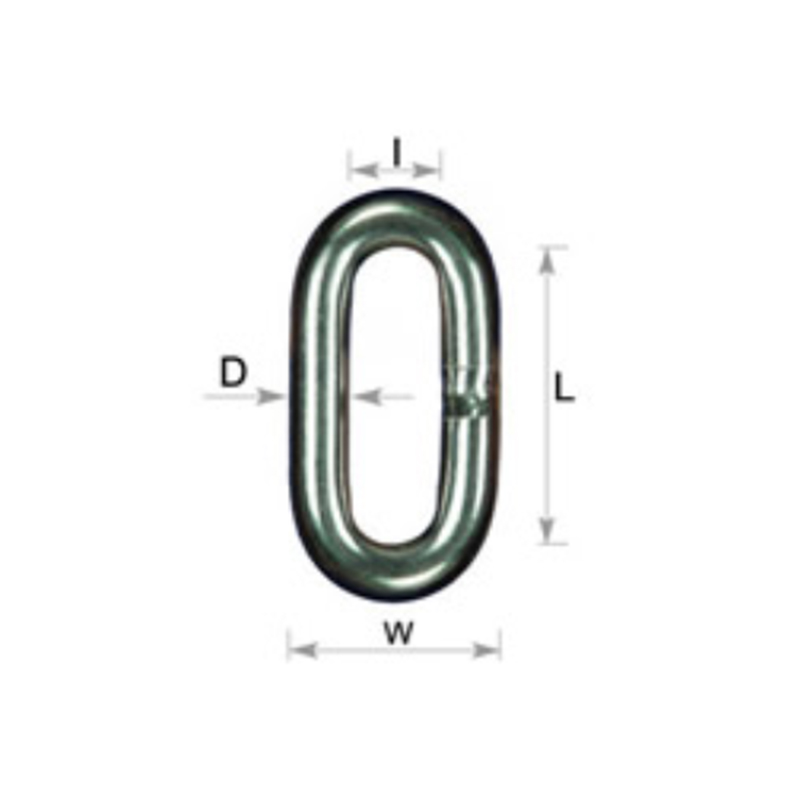

Chain Size Inside Length Outside Width Length per 11 Links Working Load Test Force Min. Breaking Force
D tolerance L tolerance Min. W Max. W 11 L tolerance
mm ± mm mm + mm - mm mm mm mm + mm - mm kN kN kN
4.0  ±0.2 16.0  + 0.3 - 0.2 5.0  14.0  176.0  + 1.6 - 0.9 2.0 5.0 8.0
5.0  ±0.2 18.0  + 0.4 - 0.2 7.0  18.2  198.0  + 1.8 - 1.0 3.2 8.0 12.5
6.0  ±0.2 21.0  + 0.5 - 0.2 8.0  21.5  231.0  + 2.0 - 1.1 4.0 10.0 16.0
8.0  ±0.2 28.0  + 0.5 - 0.2 11.0  29.0  308.0  + 2.2 - 1.2 8.0 20.0 32.0
10.0  ±0.4 35.0  + 0.6 - 0.2 14.0  36.0  385.0  + 3.0 - 1.0 12.5 36.0 50.0
13.0  ±0.5 45.0  + 0.8 - 0.3 18.0  47.0  495.0  + 4.0 - 1.0 20.0 56.0 80.0
16.0  ±0.6 56.0  + 1.0 - 0.3 22.0  58.0  616.0  + 5.0 - 2.0 32.0 90.0 125.0
18.0  ±0.9 63.0  + 1.1 - 0.3 24.0  65.0  693.0  + 6.0 - 2.0 40.0 110.0 160.0
20.0  ±1.0 70.0  + 1.3 - 0.4 27.0  72.0  770.0  + 6.0 - 2.0 50.0 140.0 200.0
23.0  ±1.2 80.0  + 1.4 - 0.4 31.0  83.0  880.0  + 7.0 - 2.0 63.0 180.0 250.0
26.0  ±1.3 91.0  + 1.6 - 0.5 35.0  94.0  1001.0  + 8.0 - 3.0 80.0 220.0 320.0
30.0  ±1.5 105.0  + 1.9 - 0.5 39.0  108.0  1155.0  + 9.0 - 3.0 110.0 320.0 450.0
33.0  ±1.7 115.0  + 2.1 - 0.6 43.0  119.0  1265.0  + 10.0 - 3.0 125.0 360.0 500.0
36.0  ±1.8 126.0  + 2.3 - 0.7 47.0  130.0  1386.0  + 11.0 - 4.0 160.0 450.0 630.0
