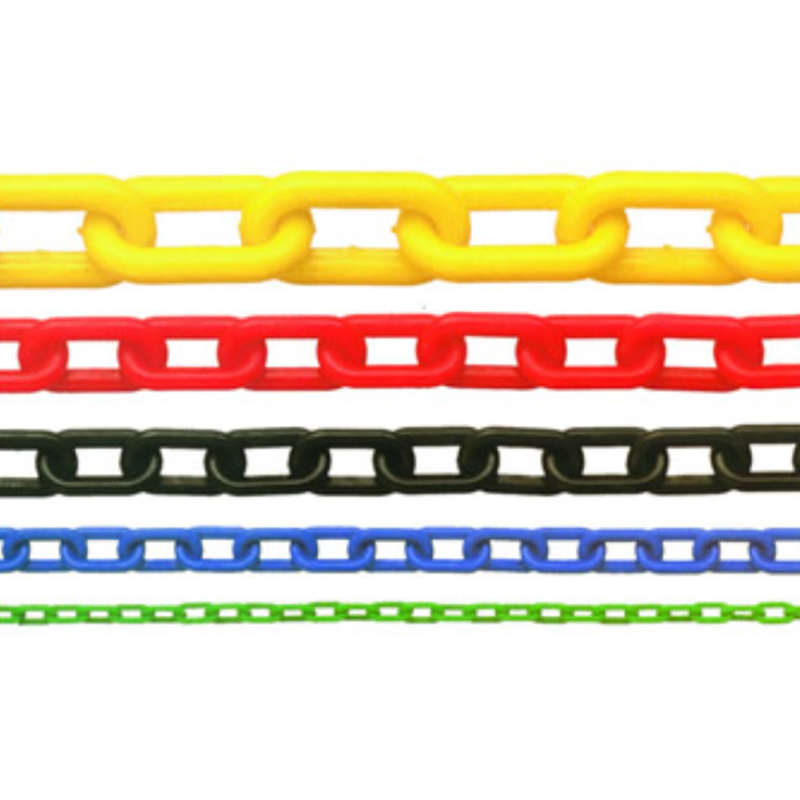

Plastic Chain
  • Plastic Chain
  • Plastic Chain

Plastic Chain

Product Category：Weldless Chain

Features：

Get A Quote
PREV：No previous article
NEXT：Decorative Chain
Description

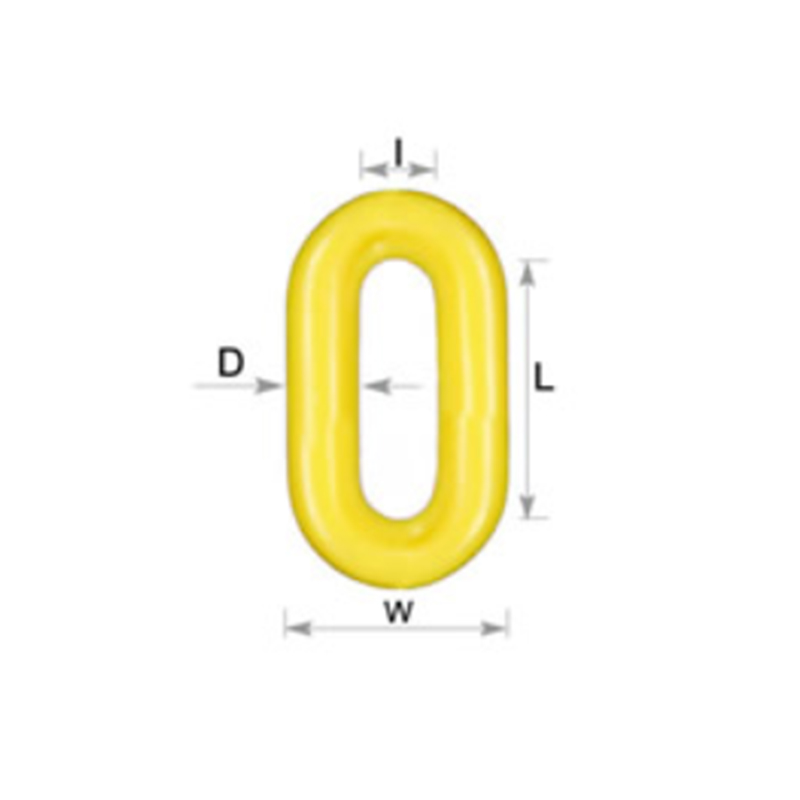

Chain Size Inside Length Inside Width Outside Width Length per 11 links
D tolerance L tolerance I W   tolerance
mm ± mm mm + mm - mm mm mm mm + mm - mm
2.0  0.2  12.0  0.2 0.2 3.5  7.5  132 1.0 0.5
3.0  0.2  16.0  0.2 0.2 4.2  11.0  176 1.4 0.7
4.0  0.2  16.0  0.3 0.2 5.0  13.7  176 2.1 1.1
5.0  0.2  18.5  0.4 0.2 6.0  17.0  203.5 2.4 1.2
6.0  0.2  18.5  0.4 0.2 7.2  20.2  203.5 2.4 1.2
7.0  0.3  22.0  0.4 0.2 8.4  23.8  242 3.0 1.4
8.0  0.3  24.0  0.4 0.2 9.6  27.2  264 3.2 1.5
9.0  0.4  27.0  0.5 0.3 10.8  30.6  297 3.6 1.8
10.0  0.4  28.0  0.5 0.3 12.0  34.0  308 3.7 1.9
11.0  0.4  31.0  0.5 0.3 13.2  37.4  341 4.0 2.0
12.0  0.3  36.0  0.6 0.3 14.4  40.8  396 4.4 2.2
13.0  0.5  36.0  0.6 0.3 15.6  44.2  396 4.6 2.4
14.0  0.6  41.0  0.7 0.4 16.8  47.6  451 5.4 2.7
16.0  0.6  45.0  0.8 0.4 19.2  54.4  495 6.0 3.0
18.0  0.9  50.0  0.8 0.4 21.3  61.2  550 6.6 3.3
19.0  0.4  53.0  0.9 0.4 22.8  64.6  583 7.0 3.7
20.0  1.0  56.0  1 0.5 24.0  68.0  616 7.4 3.7
22.0  1.2  62.0  1.1 0.5 26.4  75.0  682 8.0 4.0
23.0  1.2  64.0  1.1 0.5 27.6  78.2  704 8.4 4.2
26.0  1.3  73.0  1.2 0.6 31.2  88.4  803 9.6 4.8
28.0  1.4  78.0  1.3 0.65 33.8  95.2  858 10.2 5.1
30.0  1.5  84.0  1.4 0.7 41.0  102.0  924 11.0 5.5
32.0  1.6  90.0  1.5 0.75 43.0  108.2  990 11.8 5.9
